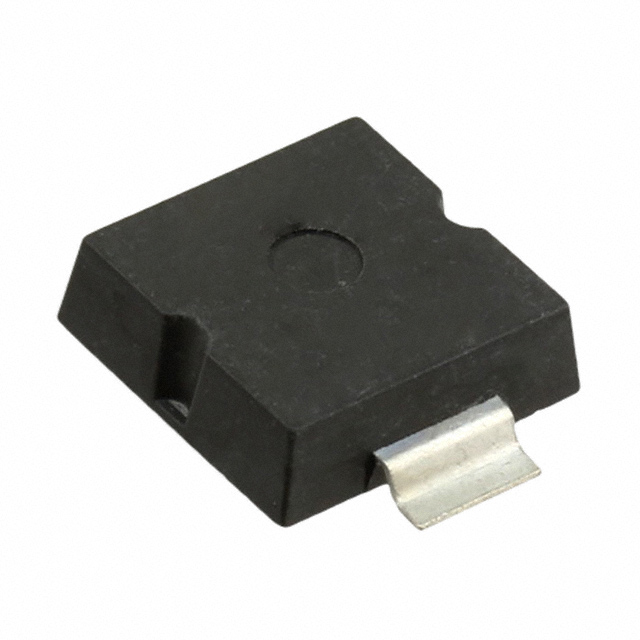

MXPLAD6.5KP54CA
ObsoleteMicrosemi Corporation
TVS DIODE 54VWM 87.1VC PLAD
Deep-Dive with AI
Search across all available documentation for this part.
MXPLAD6.5KP54CA
ObsoleteMicrosemi Corporation
TVS DIODE 54VWM 87.1VC PLAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MXPLAD6.5KP54CA |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Current - Peak Pulse (10/1000µs) | 74.8 A |
| Grade | Military |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard SMD |
| Power - Peak Pulse | 6.5 kW |
| Power - Peak Pulse | 6500 W |
| Power Line Protection | False |
| Qualification | MIL-PRF-19500 |
| Supplier Device Package | PLAD |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 60 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 87.1 V |
| Voltage - Reverse Standoff (Typ) | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MXPLAD6.5KP54CA
87.1V Clamp 74.8A Ipp Tvs Diode Surface Mount PLAD
Documents
Technical documentation and resources
No documents available
