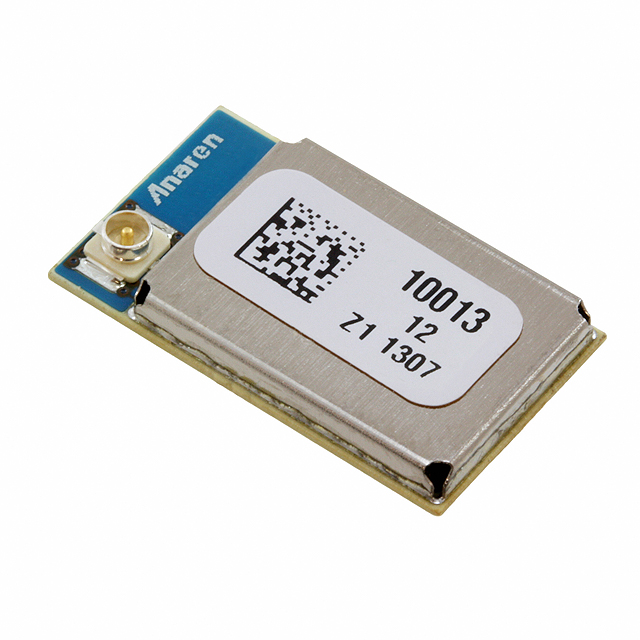

A2530E24CZ1GR
ObsoleteTTM Technologies, Inc.
RF TXRX MODULE 802.15.4U.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
A2530E24CZ1GR
ObsoleteTTM Technologies, Inc.
RF TXRX MODULE 802.15.4U.FL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A2530E24CZ1GR |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Receiving | 28 mA |
| Current - Transmitting [Max] | 128 mA |
| Current - Transmitting [Min] | 67 mA |
| Frequency | 2.4 GHz |
| Memory Size [custom] | 256 kB |
| Memory Size [custom] | 8 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 34-SMD Module |
| Power - Output | 17 dBm |
| Protocol | Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -95 dBm |
| Serial Interfaces | UART, SPI |
| Utilized IC / Part | CC2530 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A2530E24CZ1GR
802.15.4 Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
Documents
Technical documentation and resources
No documents available
