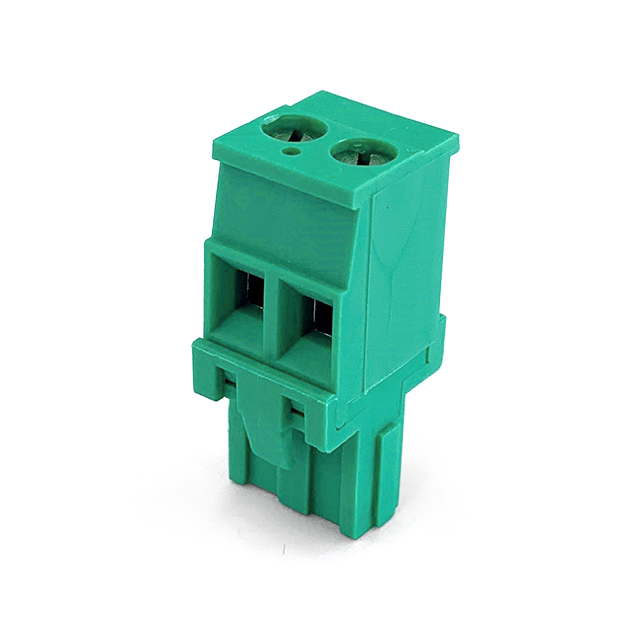

CVF020M5

Active

Sauro Electronic Connectors

TERM BLOCK PLUG 2POS 5.08MM

Search across all available documentation for this part.

Active

Sauro Electronic Connectors

TERM BLOCK PLUG 2POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	CVF020M5

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Features	Interlocking (Side)
Ingress Protection	IP40
Insulation Height	25 mm
Insulation Height	0.984 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-50 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Plug Wire Entry	90 °
Positions Per Level	2
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm
Type	Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.05 mm˛
Wire Strip Length [Max]	7.5 mm
Wire Strip Length [Min]	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Terminal Block Plug 0.200" (5.08mm) 90° Free Hanging (In-Line)
