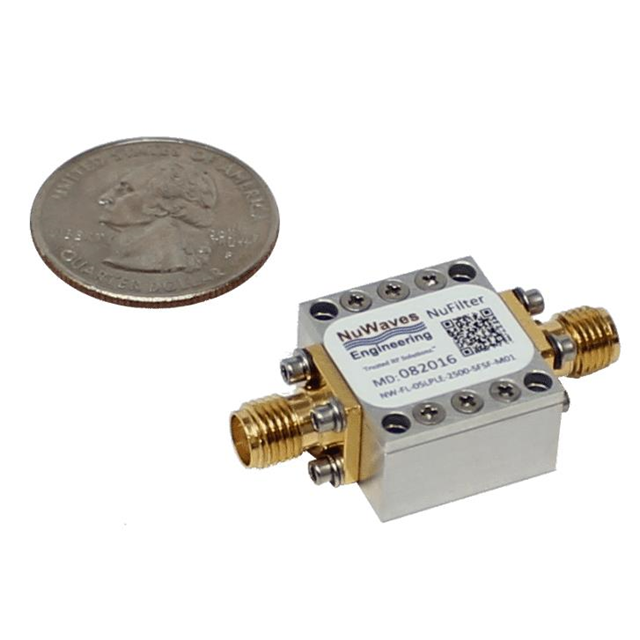

NW-FL-05LPLE-2500-SFSF-M01
ActiveNuWaves RF Solutions
RF FILTER LOW PASS 2.5GHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NW-FL-05LPLE-2500-SFSF-M01
ActiveNuWaves RF Solutions
RF FILTER LOW PASS 2.5GHZ MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NW-FL-05LPLE-2500-SFSF-M01 |
|---|---|
| Filter Type [custom] | Low Pass |
| Frequency | 2.5 GHz |
| Height (Max) [Max] | 10.16 mm |
| Height (Max) [Max] | 0.4 in |
| Insertion Loss | 0.6 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension [x] | 0.75 in |
| Size / Dimension [x] | 19.05 mm |
| Size / Dimension [y] | 0.86 " |
| Size / Dimension [y] | 21.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 999.00 | |
Description
General part information
NW-FL-05LPLE-2500-SFSF-M01
2.5GHz (Cutoff) Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 0.6dB Module, SMA Connectors
Documents
Technical documentation and resources
