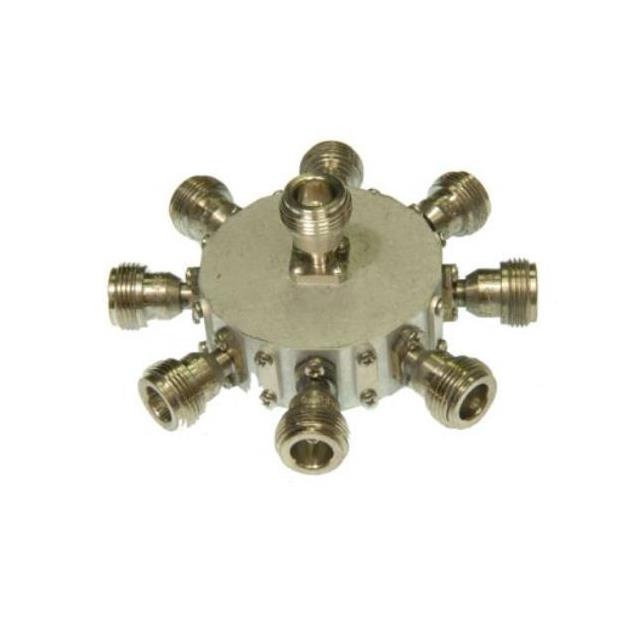

AM0-4000PD8-1332
ActiveAnatech Microwave Company
DC-4.0 GHZ 8 WAY RESISTIVE POWER
Deep-Dive with AI
Search across all available documentation for this part.
AM0-4000PD8-1332
ActiveAnatech Microwave Company
DC-4.0 GHZ 8 WAY RESISTIVE POWER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AM0-4000PD8-1332 |
|---|---|
| Frequency [Max] | 4 GHz |
| Frequency [Min] | 0 Hz |
| Insertion Loss | 18 dB |
| Package / Case | Module |
| Size / Dimension [diameter] | 53.6 mm |
| Size / Dimension [diameter] | 2.11 in |
| Size / Dimension [z] | 0.75 in |
| Size / Dimension [z] | 19.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1470.00 | |
Description
General part information
AM0-4000PD8-1332
RF Power Divider 0 Hz ~ 4 GHz Isolation (Min) 17dB, 18dB Return Loss, 5° Imbalance (Min) Module
Documents
Technical documentation and resources
No documents available
