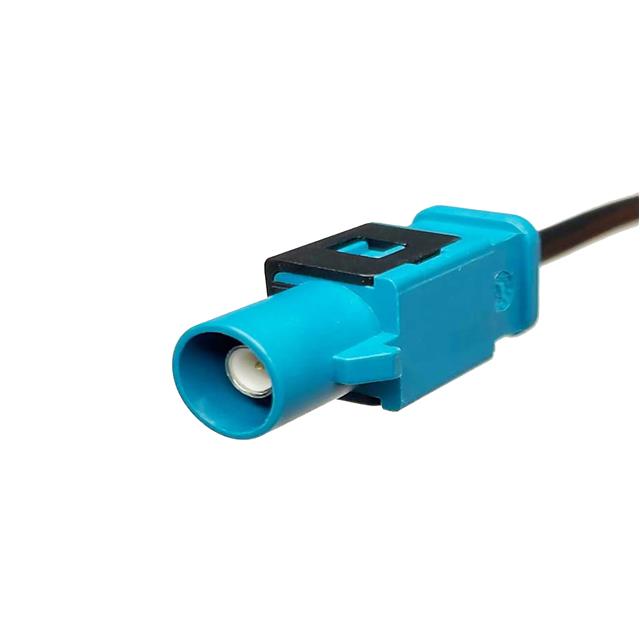

VA-01- FZSP-DP-5.9
ActiveVedtronics
CBL ASSY FAKRA-DIN PLG-PL 5.906"
Deep-Dive with AI
Search across all available documentation for this part.
VA-01- FZSP-DP-5.9
ActiveVedtronics
CBL ASSY FAKRA-DIN PLG-PL 5.906"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VA-01- FZSP-DP-5.9 |
|---|---|
| 1st Connector | Fakra Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | DIN Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded, Z Code |
| Frequency - Max [Max] | 1 GHz |
| Length [x] | 150 mm |
| Length [x] | 5.906 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Overall Impedance | 50 Ohms |
| Style | Fakra to DIN |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 7.00 | |
Description
General part information
VA-01- FZSP-DP-5.9
Cable Assembly Coaxial Fakra to DIN RG-174 5.906" (150.00mm)
Documents
Technical documentation and resources
No documents available
