KRK-U-01-8-8-1-DF5
ActiveKinnexA
CONN MOD JACK 8P8C UNSHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KRK-U-01-8-8-1-DF5
ActiveKinnexA
CONN MOD JACK 8P8C UNSHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KRK-U-01-8-8-1-DF5 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| LED Color | Yellow - Green |
| Mounting Type | Through Hole, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 90 ° |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.91 | |
Description
General part information
KRK-U-01-8-8-1-DF5

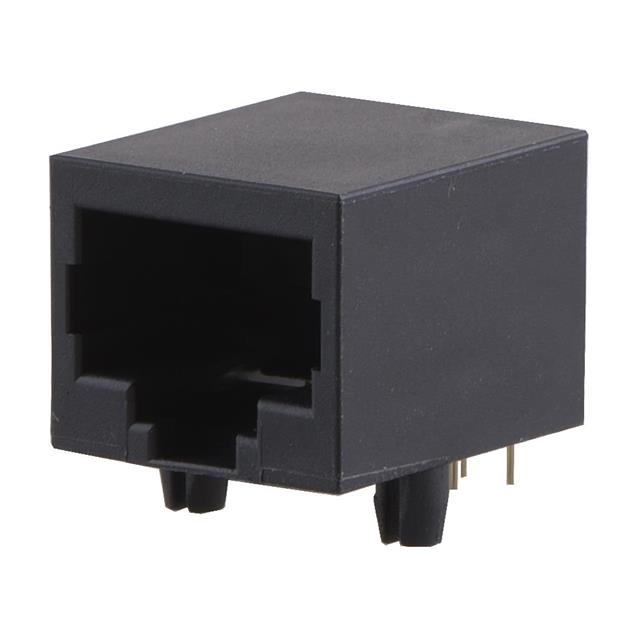

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
Documents
Technical documentation and resources
