090507040
ActiveBopla Enclosures
BOX ABS GRAY 2.56"L X 1.97"W
Deep-Dive with AI
Search across all available documentation for this part.
090507040
ActiveBopla Enclosures
BOX ABS GRAY 2.56"L X 1.97"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 090507040 |
|---|---|
| Area (L x W) | 32.5 cm² |
| Area (L x W) | 5.03 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height [z] | 35 mm |
| Height [z] | 1.378 in |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP66, NEMA 4X |
| Size / Dimension [x] | 65 mm, 2.559 in |
| Size / Dimension [y] | 1.969 in, 50 mm |
| Thickness | 0.098 in |
| Thickness | 2.49 mm |
| Weight | 0.11 lb |
| Weight | 49.9 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.12 | |
| 5 | $ 13.78 | |||
| 10 | $ 12.87 | |||
| 25 | $ 11.77 | |||
| 50 | $ 11.00 | |||
| 100 | $ 10.28 | |||
| 250 | $ 10.04 | |||
Description
General part information
090507040

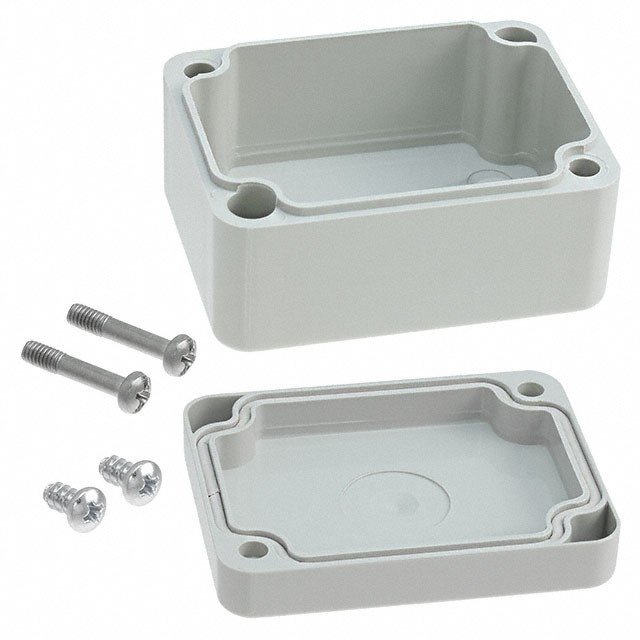

Box Plastic, ABS Gray Cover Included 2.559" L x 1.969" W (65.00mm x 50.00mm) X 1.378" (35.00mm)
Documents
Technical documentation and resources
No documents available
