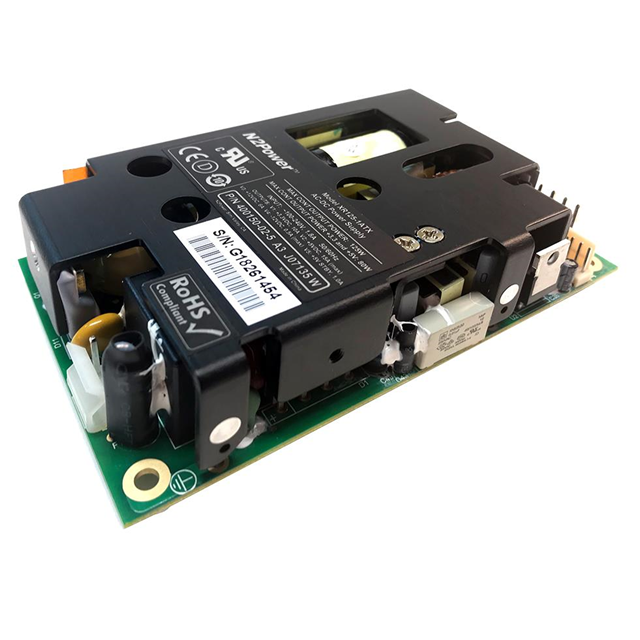

400150-01-7
ActiveN2Power
AC/DC CNVRTR 3.3V 5V +/-12V 192W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
400150-01-7
ActiveN2Power
AC/DC CNVRTR 3.3V 5V +/-12V 192W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 400150-01-7 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, DEMKO, CE |
| Current - Output 1 | 10 A |
| Current - Output 2 | 15 A |
| Current - Output 3 | 6 A |
| Current - Output 4 | 1 A |
| Efficiency | 91 % |
| Features | Universal Input, Remote Sense, Adjustable Output, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 192 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 33.5 mm |
| Size / Dimension [z] | 1.32 in |
| Standard Number | 60950-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 3.3 V |
| Voltage - Output 2 | 5 V |
| Voltage - Output 3 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 154.98 | |
Description
General part information
400150-01-7
Open Frame AC DC Converters 4 Output 3.3V 5V 12V -12V 90 ~ 264 VAC Input
