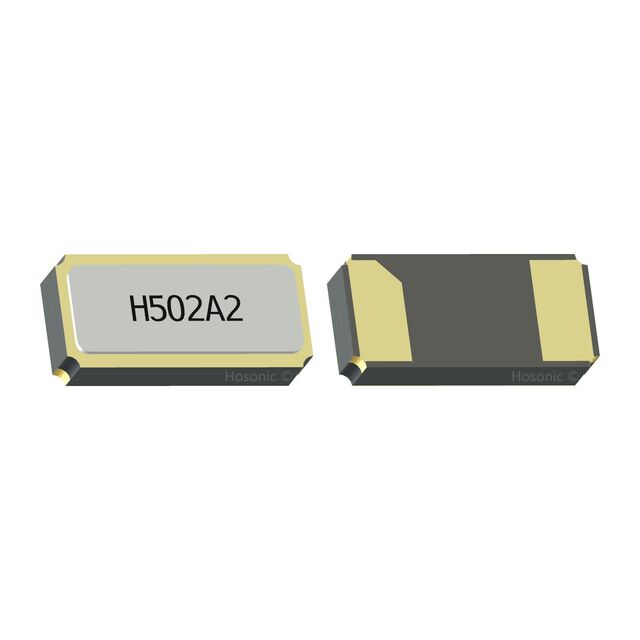

ETST00327000JE
ActiveHosonic Electronic Co., Ltd
XTAL 3215 32.768KHZ 12.5P
Deep-Dive with AI
Search across all available documentation for this part.
ETST00327000JE
ActiveHosonic Electronic Co., Ltd
XTAL 3215 32.768KHZ 12.5P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ETST00327000JE |
|---|---|
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Load Capacitance | 12.5 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.78 | |
| 10 | $ 0.67 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.51 | |||
| Digi-Reel® | 1 | $ 0.78 | ||
| 10 | $ 0.67 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.51 | |||
| Tape & Reel (TR) | 3000 | $ 0.48 | ||
| 6000 | $ 0.46 | |||
| 9000 | $ 0.45 | |||
| 15000 | $ 0.43 | |||
| 21000 | $ 0.42 | |||
Description
General part information
ETST00327000JE
32.768 kHz ±20ppm Crystal 12.5pF 70 kOhms 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
