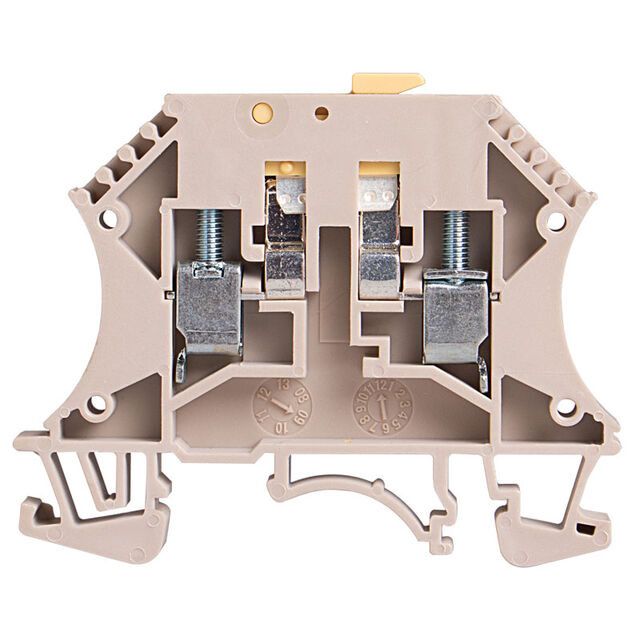

CTR4
ActiveDeca
TERM BLK SCREW 20PCS BUNDLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTR4
ActiveDeca
TERM BLK SCREW 20PCS BUNDLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTR4 |
|---|---|
| Color | Beige |
| Current - UL | 22 A |
| Disconnect Type | Lever, Switch |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal - Width [y] | 6 mm |
| Termination Style | Screw |
| Type | Disconnect |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm² [Max] | 4 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.80 | |
Description
General part information
CTR4
Terminal Block Connector 2 Position Disconnect Beige 10-22 AWG
Documents
Technical documentation and resources
