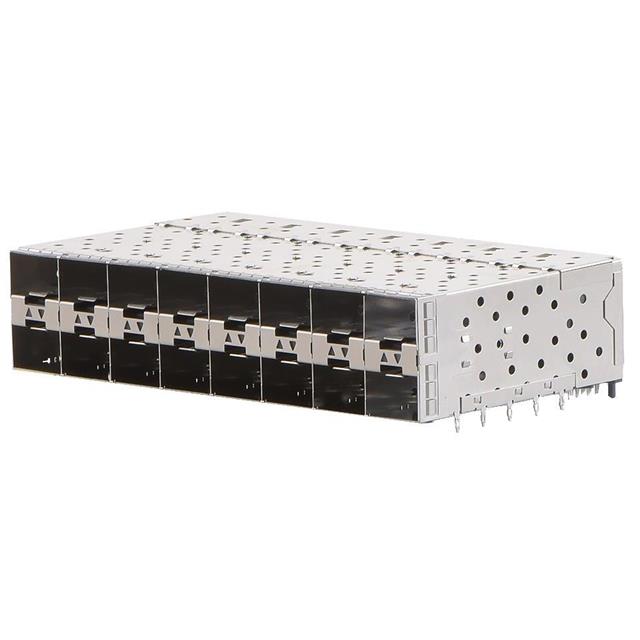

KSFP-K-PPFA-2811
ActiveKinnexA
CONNECTOR SFP+ KIT 2X8 PRESS FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KSFP-K-PPFA-2811
ActiveKinnexA
CONNECTOR SFP+ KIT 2X8 PRESS FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KSFP-K-PPFA-2811 |
|---|---|
| Connector Style | Receptacle with Cage, Ganged (2x8) |
| Connector Type | SFP+ |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | EMI Shielded, Board Guide, Light Pipe |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 320 |
| Number of Positions [x] | 20 |
| Number of Positions [y] | 16 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 78.59 | |
| 10 | $ 78.59 | |||
| 50 | $ 67.03 | |||
| 100 | $ 63.34 | |||
| 500 | $ 59.12 | |||
| 1000 | $ 59.12 | |||
Description
General part information
KSFP-K-PPFA-2811
320 (20 x 16) Position SFP+ Receptacle with Cage, Ganged (2x8) Connector Press-Fit Through Hole, Right Angle
Documents
Technical documentation and resources
