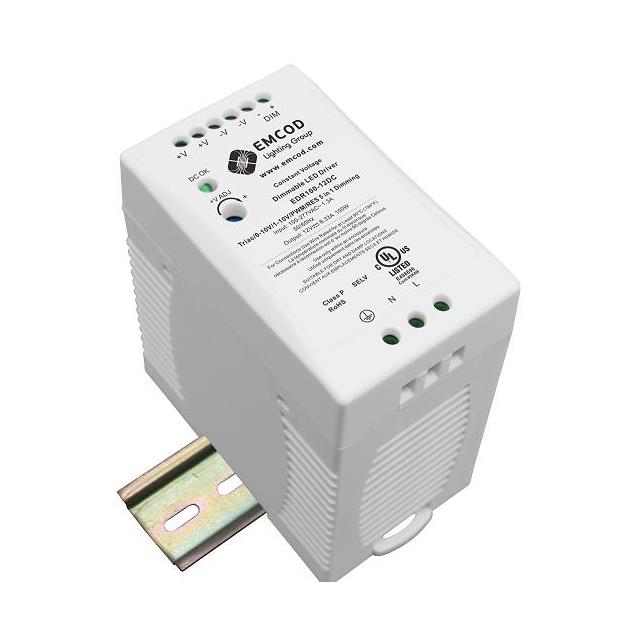

EDR100-12DC
ActiveEmcod Lighting Group
100W 12DC TRIAC/PHASE CUT & 0-10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EDR100-12DC
ActiveEmcod Lighting Group
100W 12DC TRIAC/PHASE CUT & 0-10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EDR100-12DC |
|---|---|
| Approval Agency | cULus |
| Current - Output (Max) [Max] | 5 A |
| Dimming | PWM, Analog, TRIAC |
| Efficiency | 85 % |
| Mounting Type | DIN Rail |
| Number of Outputs | 1 |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 3.54 in |
| Size / Dimension [x] | 89.9 mm |
| Size / Dimension [y] | 2.1 in |
| Size / Dimension [y] | 53.3 mm |
| Size / Dimension [z] | 4.02 " |
| Size / Dimension [z] | 102.1 mm |
| Standard Number | UL 8750 |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 147.00 | |
Description
General part information
EDR100-12DC
5A 12V Constant Voltage LED Driver AC DC Converter Topology 1 Output
