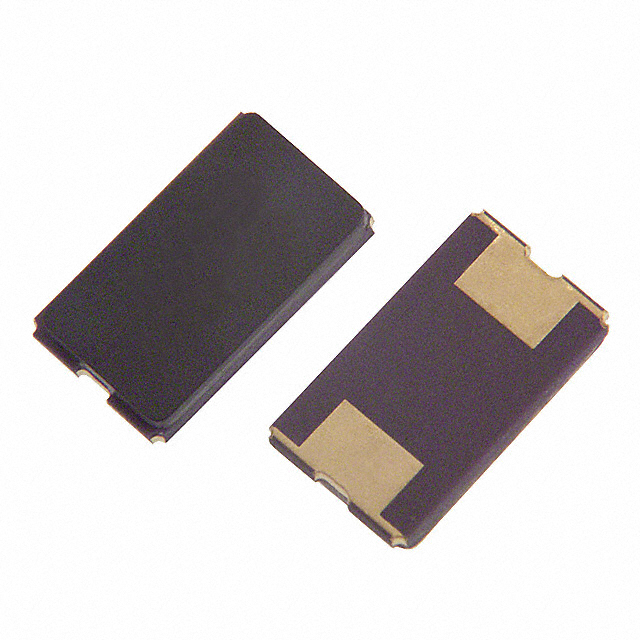

CS10-32.000MABJ-UT
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 32.0000MHZ 18PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
CS10-32.000MABJ-UT
ObsoleteCitizen Finedevice Co Ltd
CRYSTAL 32.0000MHZ 18PF SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CS10-32.000MABJ-UT |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 32 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.21 | |
| Digi-Reel® | 1 | $ 1.21 | ||
| Tape & Reel (TR) | 2000 | $ 0.73 | ||
Description
General part information
CS10-32.000MABJ-UT
32 MHz ±30ppm Crystal 18pF 50 Ohms 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
