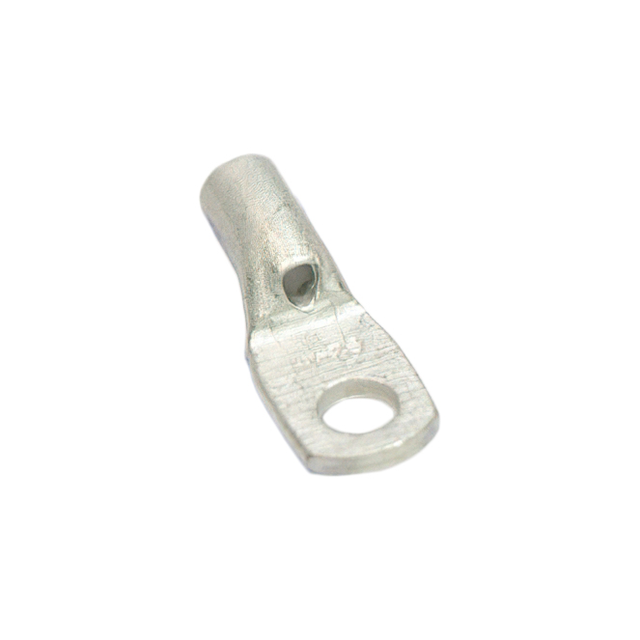

YAV10
ActiveBURNDY
RING TERMINAL, #8-10 STUD, 14-10
Deep-Dive with AI
Search across all available documentation for this part.
YAV10
ActiveBURNDY
RING TERMINAL, #8-10 STUD, 14-10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | YAV10 |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.94 in |
| Length - Overall [x] | 23.88 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud, 10 Stud, 9 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges [y] | 0.21 in |
| Width - Outer Edges [y] | 5.33 mm |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.61 | |
Description
General part information
YAV10
Ring Terminal Connector 8, 9, 10 Stud Circular 10-12 AWG Crimp
Documents
Technical documentation and resources
No documents available
