A0100008FP199AKR
ActiveStetron

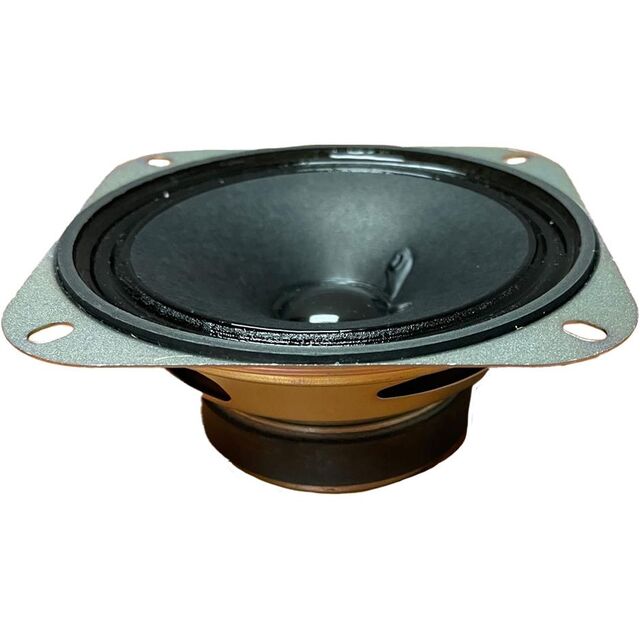

LOUDSPEAKER, 102 MM ; 8 OHMS, 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A0100008FP199AKR
ActiveStetron
LOUDSPEAKER, 102 MM ; 8 OHMS, 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A0100008FP199AKR |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 1W/1m |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 170 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 170 Hz |
| Height - Seated (Max) [Max] [z] | 1.732 in |
| Height - Seated (Max) [Max] [z] | 44 mm |
| Impedance | 8 Ohms |
| Material - Magnet | Ferrite |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Port Location | Top |
| Power - Rated | 6 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 102 mm |
| Size / Dimension [x] | 4.016 " |
| Size / Dimension [y] | 102 mm |
| Size / Dimension [y] | 4.016 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.83 | |
| 10 | $ 6.53 | |||
| 50 | $ 6.13 | |||
Description
General part information
A0100008FP199AKR
8 Ohms General Purpose Speaker 6 W 170 Hz ~ 10 kHz Top Round, Square Frame
