70367-1228
ActiveBellWether
HEADER M-PIC 12V 24POS R/A DIP
Deep-Dive with AI
Search across all available documentation for this part.
70367-1228
ActiveBellWether
HEADER M-PIC 12V 24POS R/A DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 70367-1228 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Length - Post | 2.5 mm |
| Contact Length - Post | 0.098 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height [z] | 9.91 mm |
| Insulation Height [z] | 0.39 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Number of Positions [custom] | 12 |
| Number of Positions [custom] | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 2.18 | |
| 50 | $ 2.07 | |||
Description
General part information
70367-1228

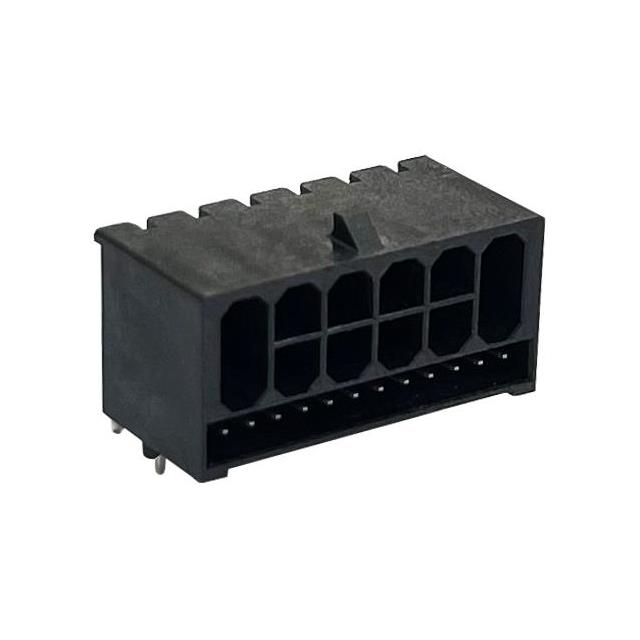

Connector Header Through Hole, Right Angle 24 (12 Power + 12 Signal) position
