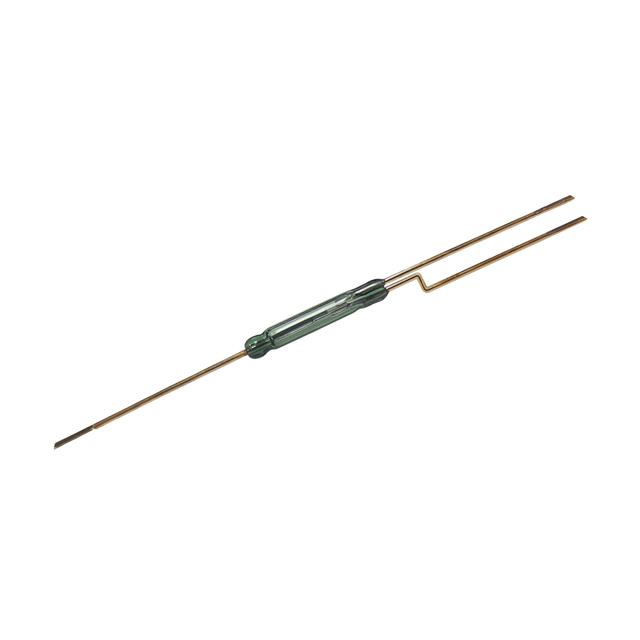

GC3436 25/30
ActiveComus International
SWITCH REED SPDT 1A 150V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GC3436 25/30
ActiveComus International
SWITCH REED SPDT 1A 150V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GC3436 25/30 |
|---|---|
| Capacitance | 0.8 pF |
| Circuit | SPDT |
| Current - Carry | 2 A |
| Current - Switching | 1 A |
| Length - Overall [x] | 2.165 in |
| Length - Overall [x] | 55 mm |
| Mounting Type | Through Hole |
| Operate Range [Max] | 30 AT |
| Operate Range [Min] | 25 |
| Operate Time | 2 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Rated | 20 VA |
| Release Range | 5 AT |
| Release Time | 2 ms |
| Size - Body [diameter] | 0.09 in |
| Size - Body [diameter] | 2.29 mm |
| Size - Body [z] | 14 mm |
| Size - Body [z] | 0.551 in |
| Termination Style | Axial |
| Type | Glass Body Reed |
| Voltage - Switching AC [custom] | 150 V |
| Voltage - Switching DC | 150 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.32 | |
| 10 | $ 4.86 | |||
| 25 | $ 4.42 | |||
| 100 | $ 3.82 | |||
| 250 | $ 3.47 | |||
| 500 | $ 3.21 | |||
| 1000 | $ 2.98 | |||
| 2500 | $ 2.86 | |||
Description
General part information
GC3436 25/30
Glass Body Reed Switch SPDT 25 ~ 30AT Operate Range 20VA 1A (AC/DC) 150 V Through Hole
