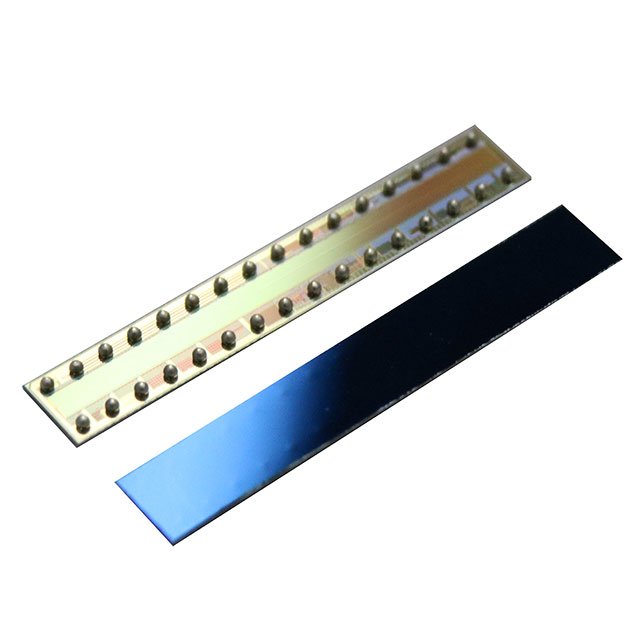

EPC902-CSP32-033
ActiveESPROS Photonics AG
CCD LINE SENSOR 512X1, PIXEL PIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPC902-CSP32-033
ActiveESPROS Photonics AG
CCD LINE SENSOR 512X1, PIXEL PIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC902-CSP32-033 |
|---|---|
| Active Pixel Array [x] | 512 |
| Active Pixel Array [y] | 1 |
| Frames per Second | 73000 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 32-XFBGA, CSPBGA |
| Pixel Size [x] | 15 µm |
| Pixel Size [y] | 15 µm |
| Supplier Device Package | 32-CSP |
| Supplier Device Package [x] | 8.08 |
| Supplier Device Package [y] | 1.32 |
| Type | CCD |
| Voltage - Supply [Max] | 3.45 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 32.45 | |
| 10 | $ 27.04 | |||
| 25 | $ 23.95 | |||
| 100 | $ 23.18 | |||
| Digi-Reel® | 1 | $ 32.45 | ||
| 10 | $ 27.04 | |||
| 25 | $ 23.95 | |||
| 100 | $ 23.18 | |||
| Tape & Reel (TR) | 1000 | $ 20.55 | ||
Description
General part information
EPC902-CSP32-033
CCD Image Sensor 512H x 1V 15µm x 15µm 32-CSP (8.08x1.32)
Documents
Technical documentation and resources
