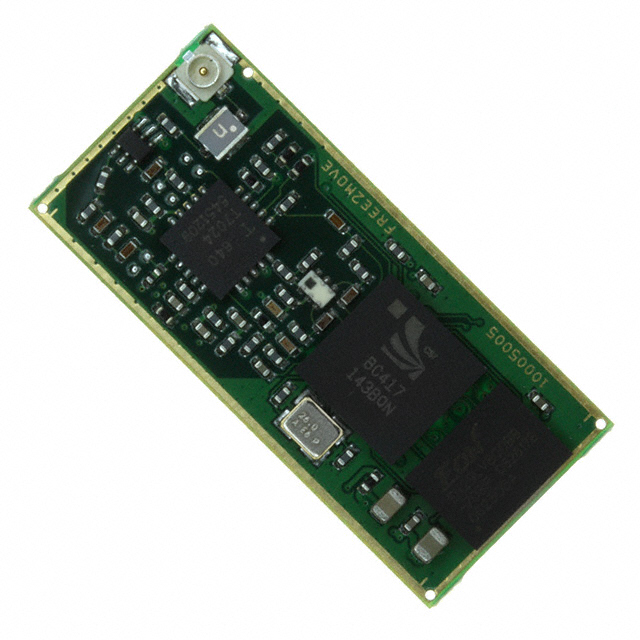

F2M03GX-S01
ObsoleteFree2Move
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F2M03GX-S01
ObsoleteFree2Move
RF TXRX MOD BLUETOOTH CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F2M03GX-S01 |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 38 mA |
| Current - Transmitting | 250 mA |
| Data Rate | 3 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power - Output | 18 dBm |
| Protocol | Bluetooth v2.0 +EDR |
| RF Family/Standard | Bluetooth |
| Sensitivity | -89 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
F2M03GX-S01
Bluetooth Bluetooth v2.0 +EDR Transceiver Module 2.4GHz Integrated, Chip Surface Mount
