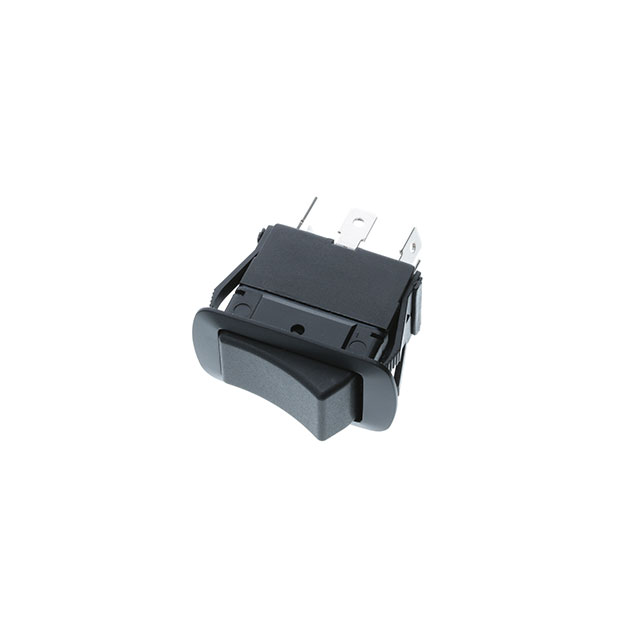

SRB1-2G-DC-1-NN
ActiveSwitch Components
SWITCH ROCKER DPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SRB1-2G-DC-1-NN
ActiveSwitch Components
SWITCH ROCKER DPDT 10A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SRB1-2G-DC-1-NN |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, cURus, ENEC |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 21 A, 20 A |
| Electrical Life | 6000 Cycles |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 36.6 mm |
| Panel Cutout Dimensions [y] | 21.2 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.82 | |
| 10 | $ 7.51 | |||
| 25 | $ 7.22 | |||
| 50 | $ 6.82 | |||
| 100 | $ 6.49 | |||
| 250 | $ 6.16 | |||
| 500 | $ 5.61 | |||
| 1000 | $ 5.13 | |||
Description
General part information
SRB1-2G-DC-1-NN
Rocker Switch DPDT 20 (AC), 21 (DC) 125 V Panel Mount, Snap-In
