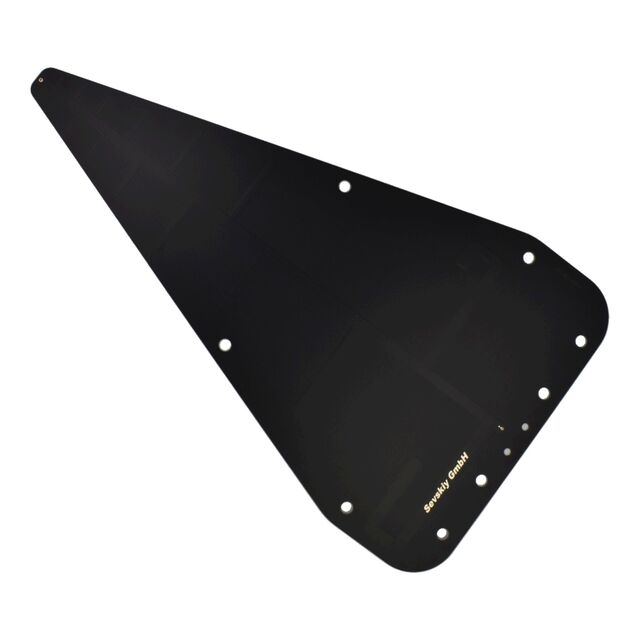

AN220201
ActiveSevskiy GmbH
RF ANT 0.79-8GHZ DIRECTED SMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN220201
ActiveSevskiy GmbH
RF ANT 0.79-8GHZ DIRECTED SMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN220201 |
|---|---|
| Antenna Type | Log-Periodic |
| Applications | ISM, GSM, UMTS, 5G, RFID, LTE, IoT, UWB |
| Frequency (Center/Band) | 5.02 GHz |
| Frequency Group | Ultra Wide Band |
| Frequency Range [Max] | 9.25 GHz |
| Frequency Range [Min] | 790 MHz |
| Gain | 6.5 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| Return Loss | -10 dB |
| RF Family/Standard | Ultra Wide Band |
| Termination | SMA Female |
| VSWR | 1.93 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AN220201
RF ANTENNA 5G, GSM, IoT, ISM, LTE, RFID, UMTS, UWB Log-Periodic SMA Female Screw Mount
