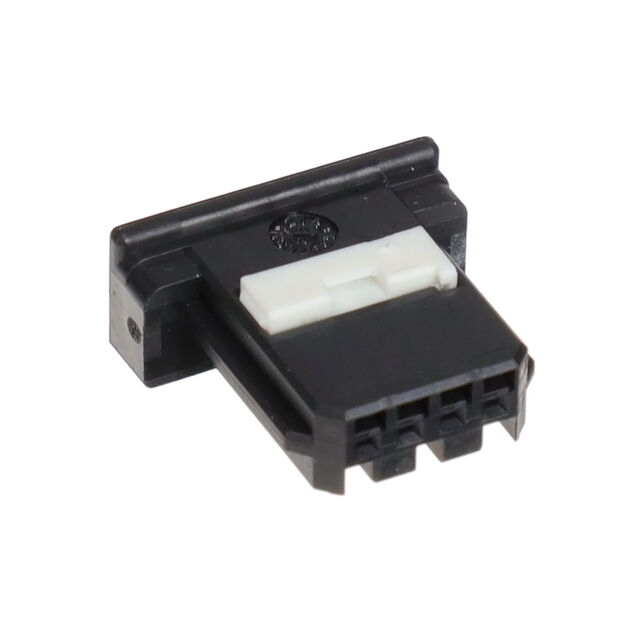

IMSA-13103S-04Y500
ActiveIRISO USA Inc.
CONN RCPT HSG 4POS 2.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-13103S-04Y500 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Features | Retainer |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.57 | |
| 10 | $ 0.49 | |||
| 25 | $ 0.45 | |||
| 40 | $ 0.42 | |||
| 187 | $ 0.41 | |||
| 374 | $ 0.37 | |||
| 561 | $ 0.35 | |||
| 1122 | $ 0.29 | |||
Description
General part information
IMSA-13103S-04Y500
4 Rectangular Connectors - Housings Receptacle Black 0.079" (2.00mm)
