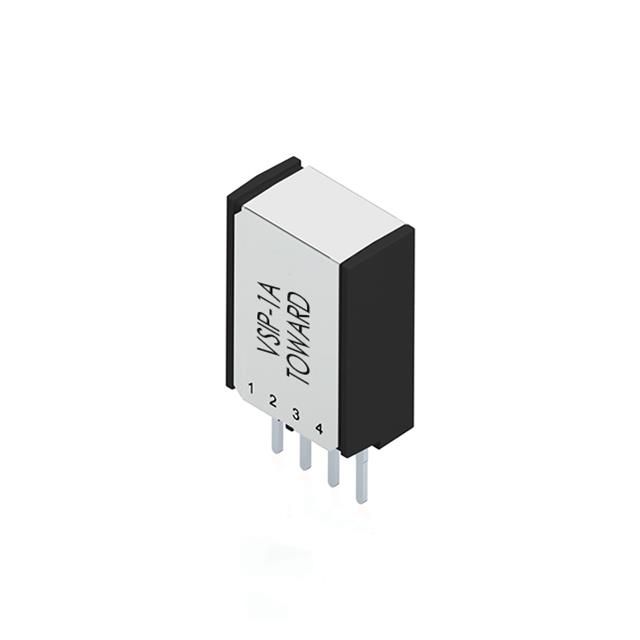

VSIP-1A05I
ActiveBright Toward Industrial Co., Ltd.
150V/0.5A, THE SMALLEST HIGH POW
Deep-Dive with AI
Search across all available documentation for this part.
VSIP-1A05I
ActiveBright Toward Industrial Co., Ltd.
150V/0.5A, THE SMALLEST HIGH POW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSIP-1A05I |
|---|---|
| Coil Resistance | 400 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.1 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage [Max] | 100 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.46 | |
| 10 | $ 11.76 | |||
| 25 | $ 11.14 | |||
| 50 | $ 10.70 | |||
| 100 | $ 10.27 | |||
| 250 | $ 9.73 | |||
| 500 | $ 9.35 | |||
| 1000 | $ 8.97 | |||
Description
General part information
VSIP-1A05I
150V/0.5A, THE SMALLEST HIGH POW
Documents
Technical documentation and resources
