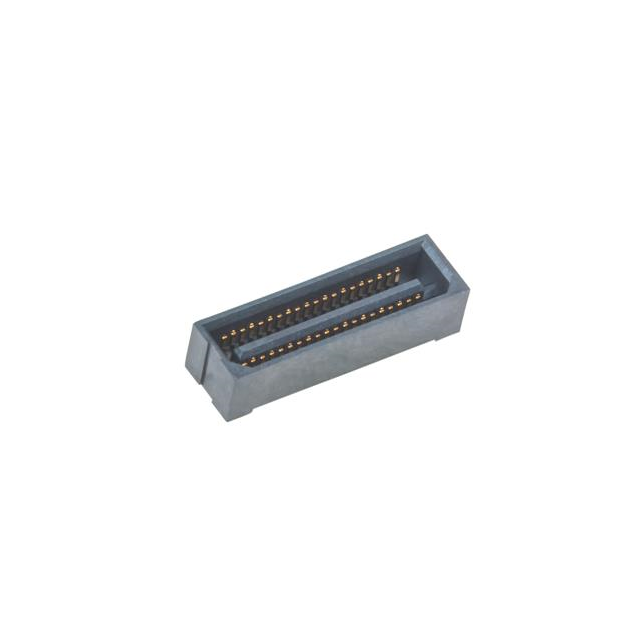

11826-BBA
ActiveAmphenol ICC
0.6MM 4 VERTICAL WELDING SMD,P=0.6MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
11826-BBA
ActiveAmphenol ICC
0.6MM 4 VERTICAL WELDING SMD,P=0.6MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 11826-BBA |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Features | Board Guide |
| Height Above Board | 4.7 mm |
| Height Above Board | 0.185 in |
| Mated Stacking Heights | 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 80 |
| Pitch [x] | 0.6 mm |
| Pitch [x] | 0.024 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
11826-BBA
80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
