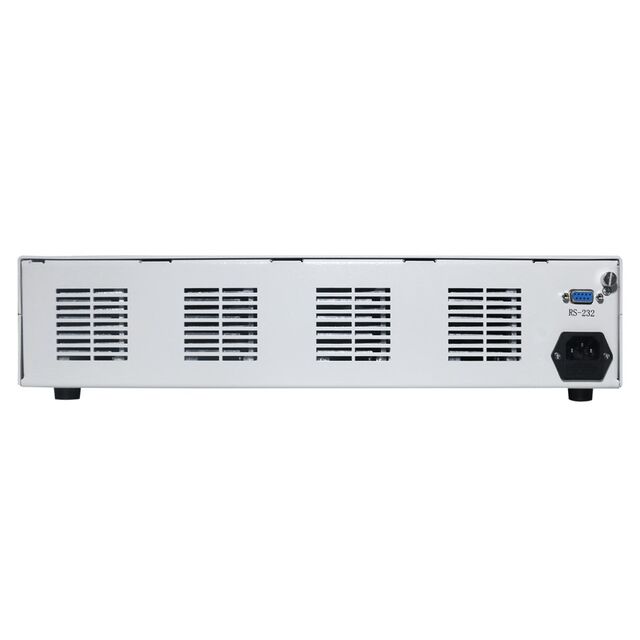

MPS-3034A
ActiveMATRIX TECHNOLOGY INC.
0-30V/0-3A*4CH, 2U HEIGHT,LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPS-3034A
ActiveMATRIX TECHNOLOGY INC.
0-30V/0-3A*4CH, 2U HEIGHT,LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPS-3034A |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.05% + 5 digits, 0.05% + 2mA |
| Current - Output [Max] | 3 A |
| Current - Output [Min] | 0 A |
| Current Regulation - Line | 5 mA |
| Current Regulation - Line | 0.02 % |
| Current Regulation - Load | 0.02 %, 5 mA |
| Display Type | VFD |
| Features | RS232, List Output, Linear, Programmable, SENSE |
| Number of Characters | 5 |
| Number of Outputs | 4 |
| Power (Watts) | 360 W |
| Ripple | 3 mA rms, 3 mVrms |
| Size / Dimension [x] | 17.3 in |
| Size / Dimension [x] | 440 mm |
| Size / Dimension [y] | 340 mm |
| Size / Dimension [y] | 13.4 " |
| Size / Dimension [z] | 3.6 in |
| Size / Dimension [z] | 90 mm |
| Type | Bench (AC to DC) |
| Voltage - Output [Max] | 30 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply | 220 VAC, 110 VAC/DC |
| Voltage Regulation - Line | 0.02 %, 5 mV |
| Voltage Regulation - Load | 5 mV, 0.02 % |
| Weight | 25 kg |
| Weight | 55.1 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1990.00 | |
| 2 | $ 1980.00 | |||
| 3 | $ 1970.00 | |||
| 4 | $ 1960.00 | |||
Description
General part information
MPS-3034A
0 ~ 30V Output Bench (AC to DC) Power Supply VFD 0 ~ 3A Output 360W Features Linear, List Output, Programmable, RS232, SENSE
