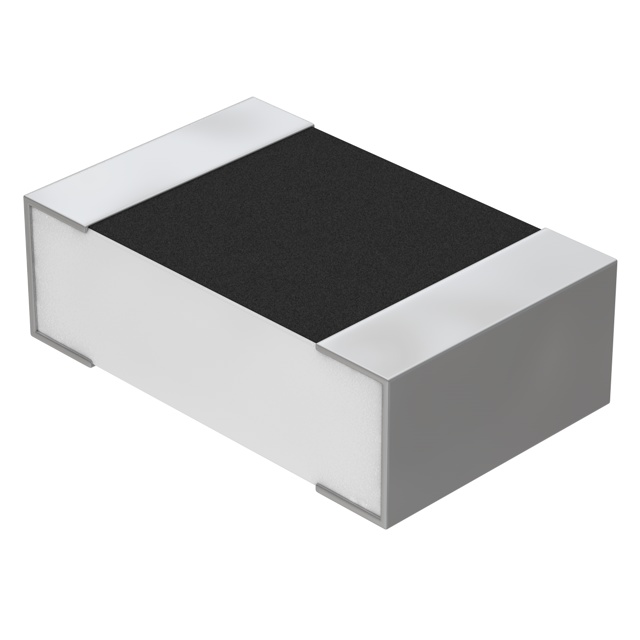

Y16241K20000B9W
VPG Foil Resistors
RES SMD 1.2K OHM 0.1% 1/5W 0805
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Y16241K20000B9W
VPG Foil Resistors
RES SMD 1.2K OHM 0.1% 1/5W 0805
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Y16241K20000B9W |
|---|---|
| Features | Non-Inductive, Moisture Resistant |
| Height - Seated (Max) [Max] | 0.025 in |
| Height - Seated (Max) [Max] | 0.64 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Power (Watts) | 0.2 W |
| Power (Watts) | 1/5 |
| Resistance | 1.2 kOhms |
| Size / Dimension [x] | 2.03 mm |
| Size / Dimension [x] | 0.08 " |
| Size / Dimension [y] | 0.05 " |
| Size / Dimension [y] | 1.27 mm |
| Supplier Device Package | 0805 |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 13.29 | |
Description
General part information
Y16241K20000B9W
1.2 kOhms ±0.1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Moisture Resistant, Non-Inductive Metal Foil
