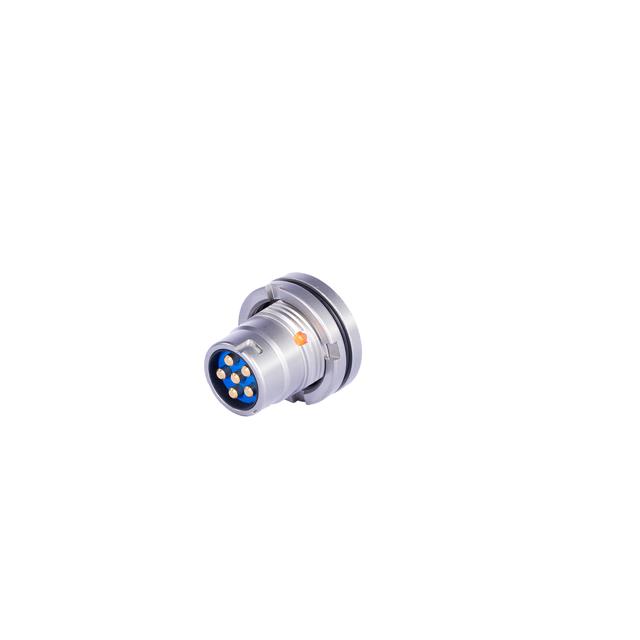

B283-1
ActiveBERNIER Connect
SAND BLASTED AUDIO RECEPTACLE WI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
B283-1
ActiveBERNIER Connect
SAND BLASTED AUDIO RECEPTACLE WI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | B283-1 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 86.67 | |
| 10 | $ 73.67 | |||
| 100 | $ 62.63 | |||
Description
General part information
B283-1
6 Position Circular Connector Receptacle, Male Pins Solder Cup
