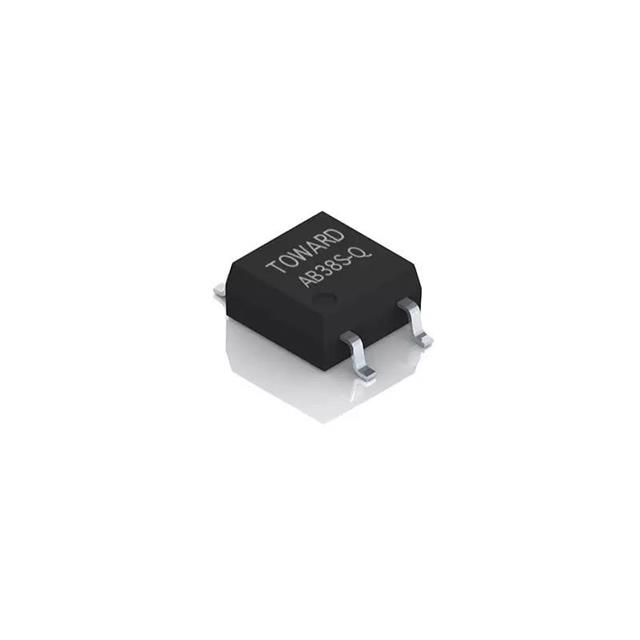

AB38S-Q-R1
ActiveBright Toward Industrial Co., Ltd.
SOP-4, 600V / 80MA, SSR RELAY SP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB38S-Q-R1
ActiveBright Toward Industrial Co., Ltd.
SOP-4, 600V / 80MA, SSR RELAY SP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB38S-Q-R1 |
|---|---|
| Grade | Automotive |
| Load Current | 70 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 60 Ohm |
| Output Type | DC, AC |
| Package / Case | 4-SMD, Gull Wing |
| Qualification | AEC-Q101 |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.17 VDC |
| Voltage - Load [Max] | 600 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.73 | |
| 10 | $ 2.38 | |||
| 25 | $ 2.26 | |||
| 50 | $ 2.17 | |||
| 100 | $ 2.08 | |||
| 250 | $ 1.97 | |||
| 500 | $ 1.89 | |||
| Digi-Reel® | 1 | $ 2.73 | ||
| 10 | $ 2.38 | |||
| 25 | $ 2.26 | |||
| 50 | $ 2.17 | |||
| 100 | $ 2.08 | |||
| 250 | $ 1.97 | |||
| 500 | $ 1.89 | |||
| Tape & Reel (TR) | 1000 | $ 1.82 | ||
| 2000 | $ 1.75 | |||
| 3000 | $ 1.70 | |||
| 5000 | $ 1.65 | |||
Description
General part information
AB38S-Q-R1
Solid State SPST-NO (1 Form A) 4-SMD, Gull Wing
