56206L1
ObsoleteSwitchcraft Inc.
SWITCH SLIDE DPDT 500MA 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
56206L1
ObsoleteSwitchcraft Inc.
SWITCH SLIDE DPDT 500MA 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 56206L1 |
|---|---|
| Actuator Length [x] | 5.08 mm |
| Actuator Material | Thermoplastic |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 500 mA |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On |
| Switch Travel | 3.61 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
56206L1

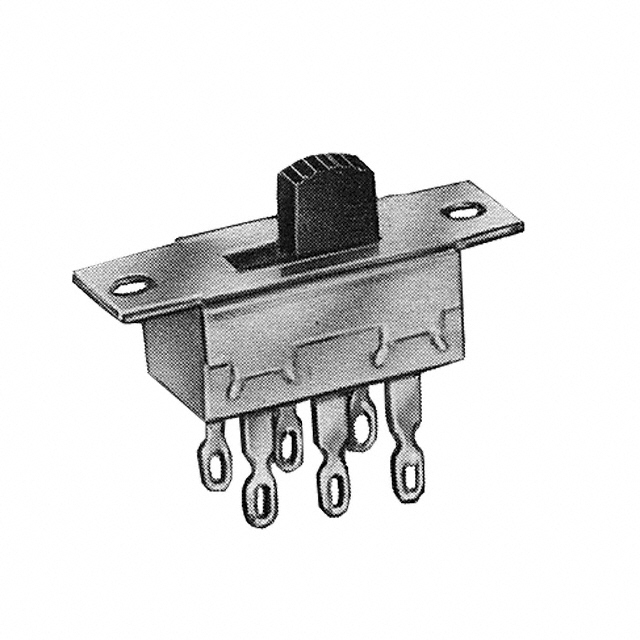

Slide Switch DPDT Panel Mount
