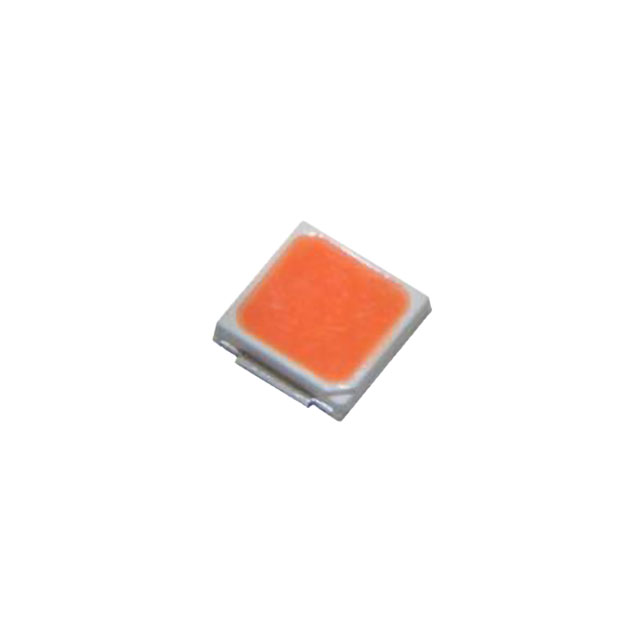

QLSP04PCRU
ActiveQuelighting Corp
3030 PACKAGE HORTICULTURE LED, T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QLSP04PCRU
ActiveQuelighting Corp
3030 PACKAGE HORTICULTURE LED, T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QLSP04PCRU |
|---|---|
| Color | Red |
| Current - Max [Max] | 500 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Lumens/Watt @ Current - Test | 24 lm/W |
| Luminous Flux @ Current/Temperature | 28 lm |
| Mounting Type | Surface Mount |
| Package / Case | 1212 |
| Package / Case | 3030 Metric |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
| Supplier Device Package | 3030 |
| Thermal Resistance of Package [custom] | 11.3 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.25 V |
| Wavelength | 620 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.85 | |
| 10 | $ 0.55 | |||
| 100 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.85 | ||
| 10 | $ 0.55 | |||
| 100 | $ 0.36 | |||
| Tape & Reel (TR) | 1000 | $ 0.29 | ||
| 2000 | $ 0.27 | |||
| 5000 | $ 0.26 | |||
| 10000 | $ 0.25 | |||
| 25000 | $ 0.25 | |||
Description
General part information
QLSP04PCRU
LED Lighting Color Horticulture Red 620nm (615nm ~ 625nm) 1212 (3030 Metric)
