A0100008FP12PA
ActiveStetron

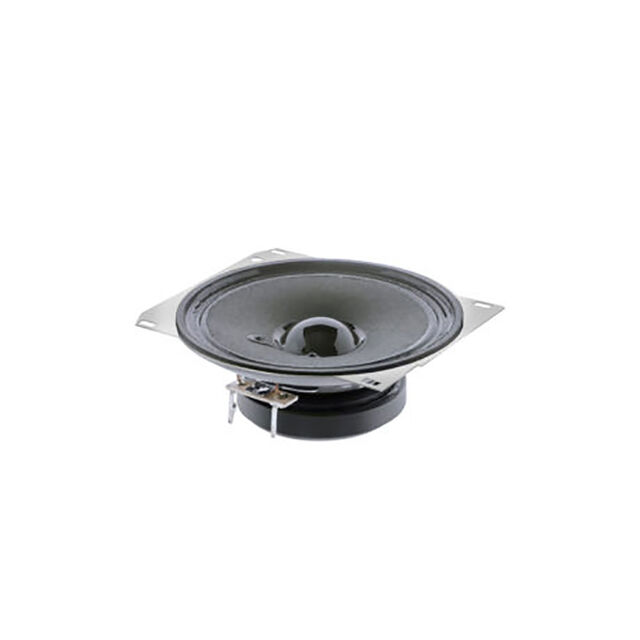

LOUDSPEAKER, 103 MM ; 8 OHMS, 4W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A0100008FP12PA
ActiveStetron
LOUDSPEAKER, 103 MM ; 8 OHMS, 4W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A0100008FP12PA |
|---|---|
| Efficiency - dBA | 93 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 500 Hz |
| Frequency Range [Max] | 5 kHz |
| Frequency Range [Min] | 500 Hz |
| Height - Seated (Max) [Max] [z] | 1.28 in |
| Height - Seated (Max) [Max] [z] | 32.5 mm |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Port Location | Top |
| Power - Rated | 4 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 4.055 in |
| Size / Dimension [x] | 103 mm |
| Size / Dimension [y] | 103 mm |
| Size / Dimension [y] | 4.055 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.36 | |
| 10 | $ 5.30 | |||
| 50 | $ 4.98 | |||
Description
General part information
A0100008FP12PA
8 Ohms General Purpose Speaker 4 W 500 Hz ~ 5 kHz Top Round, Square Frame
