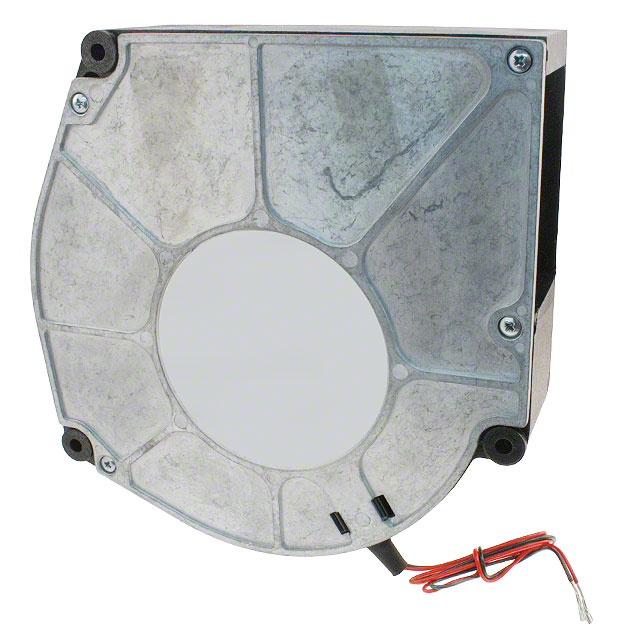

17000302A
ActiveComair Rotron
FAN BLOWER 50.8MM SPDD24K1 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17000302A
ActiveComair Rotron
FAN BLOWER 50.8MM SPDD24K1 24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17000302A |
|---|---|
| Air Flow | 2.81 m³/min |
| Air Flow | 100.5 CFM |
| Approval Agency | UL, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 3.14 A |
| Fan Type | Blower |
| Features | Locked Rotor Protection, Auto Restart |
| Lifetime @ Temp. | 62000 Hrs |
| Material - Blade | Polycarbonate (PC) |
| Material - Frame | Polycarbonate (PC) |
| Noise | 67.2 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 75.3 W |
| RPM | 4000 RPM |
| Size / Dimension [x] | 161.8 mm |
| Size / Dimension [z] | 161.8 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 12 VDC |
| Width [y] | 2 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 69.21 | |
| 20 | $ 62.62 | |||
| 40 | $ 58.02 | |||
Description
General part information
17000302A
Fan Blower 24VDC Square/Rounded - 161.8mm L x 161.8mm H Ball 100.5 CFM (2.81m³/min) 2 Wire Leads
