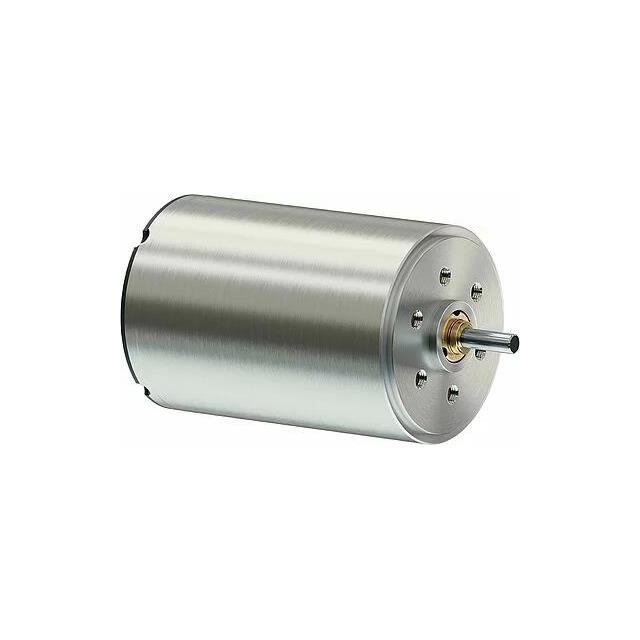

3000003305
ActiveFaulhaber
2232U006SR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3000003305
ActiveFaulhaber
2232U006SR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3000003305 |
|---|---|
| Diameter - Shaft [diameter] | 0.137 in |
| Diameter - Shaft [diameter] | 3.5 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 8.1 mm |
| Length - Shaft and Bearing [x] | 0.319 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 12 mm |
| Mounting Hole Spacing | 0.472 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 8.37 W |
| RPM | 5920 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 22 mm |
| Size / Dimension [diameter] | 0.866 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 10 mNm |
| Torque - Rated (oz-in / mNm) | 1.416 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 135.90 | |
| 5 | $ 110.40 | |||
| 20 | $ 84.90 | |||
| 50 | $ 80.70 | |||
Description
General part information
3000003305
Brushed DC Motor Standard 5920 RPM 8.37W 6VDC
