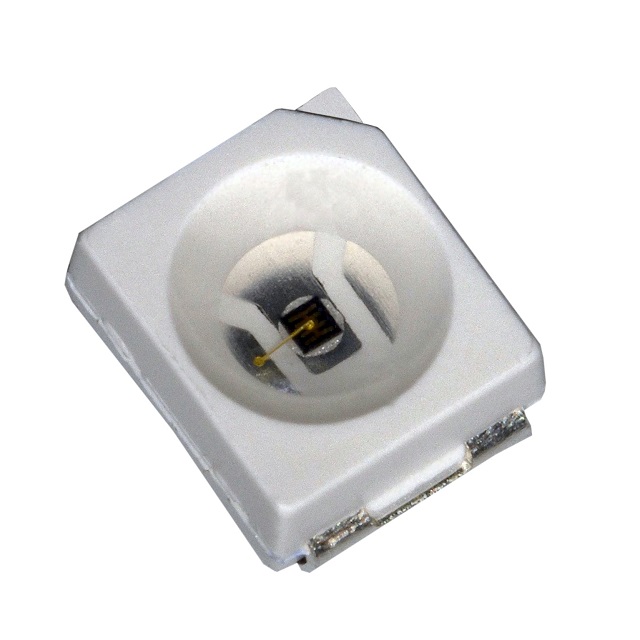

AL1411A-YIR-100MA
ActiveSolidlite
1411 850NM 100MA IR LED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AL1411A-YIR-100MA
ActiveSolidlite
1411 850NM 100MA IR LED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AL1411A-YIR-100MA |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 120 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-PLCC |
| Radiant Intensity (Ie) Min @ If | 100 mA |
| Radiant Intensity (Ie) Min @ If [Min] | 10 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.56 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.31 | |||
| 2000 | $ 0.27 | |||
| 20000 | $ 0.22 | |||
Description
General part information
AL1411A-YIR-100MA
Infrared (IR) Emitter 850nm 1.8V 120mA 10mW/sr @ 100mA 120° 2-PLCC
