1206RBD0900S01
ActiveORIENTAL TECHNOLOGY

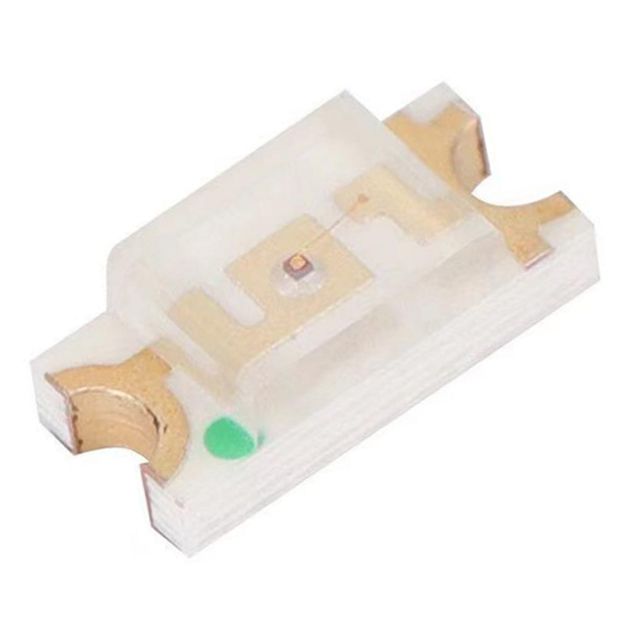

LED RED CLEAR 3216 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1206RBD0900S01
ActiveORIENTAL TECHNOLOGY
LED RED CLEAR 3216 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1206RBD0900S01 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 230 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 3216 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Dominant | 620 nm |
| Wavelength - Peak | 630 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.18 | |
Description
General part information
1206RBD0900S01
Red 620nm LED Indication - Discrete 1.8V 1206 (3216 Metric)
