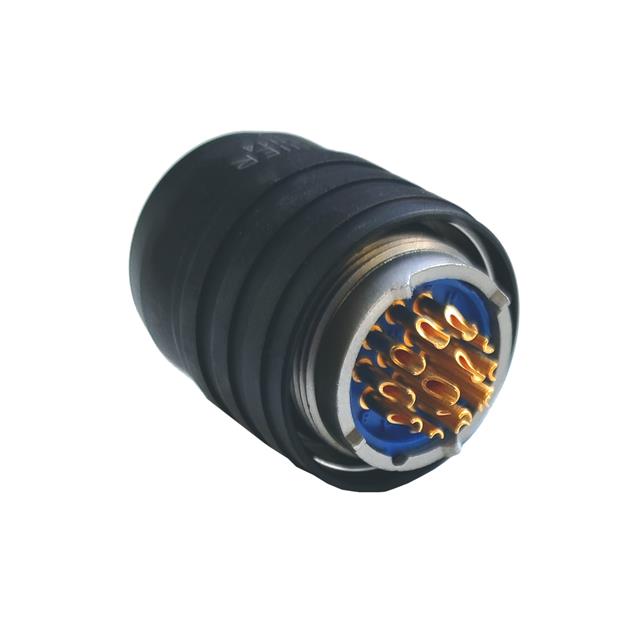

CMA 5W14
ActiveBERNIER Connect
PUSH-PULL PLUG WITH 14 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMA 5W14
ActiveBERNIER Connect
PUSH-PULL PLUG WITH 14 CONTACTS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMA 5W14 |
|---|---|
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Fastening Type | Push-Pull |
| Insert Material | Diallyl Phthalate (DAP) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | W |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 68.17 | |
| 10 | $ 57.95 | |||
| 100 | $ 49.26 | |||
Description
General part information
CMA 5W14
14 Position Circular Connector Plug, Male Pins Solder Cup
