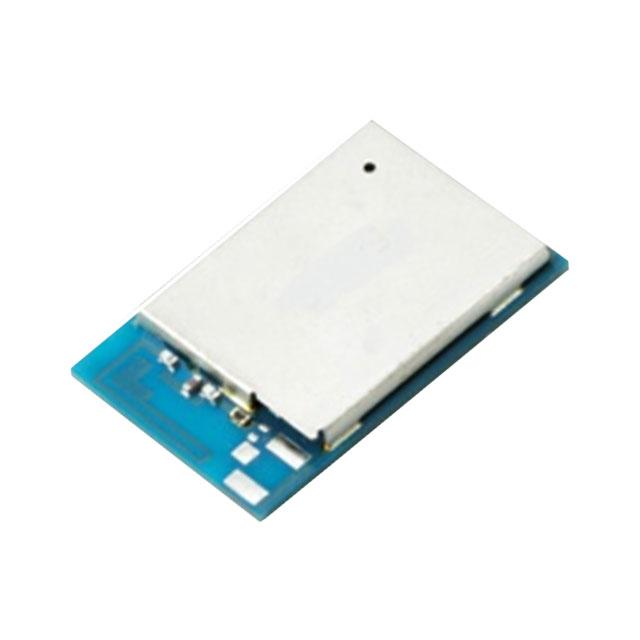

WYSACVLAY-WX
ActiveKaga FEI America, Inc.
RF TXRX MOD WIFI TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WYSACVLAY-WX
ActiveKaga FEI America, Inc.
RF TXRX MOD WIFI TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WYSACVLAY-WX |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving | 82 mA |
| Current - Transmitting | 165 mA |
| Data Rate | 115.2 kbps |
| Frequency [Max] | 2.462 GHz |
| Frequency [Min] | 2.412 GHz |
| Memory Size | 512 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 44-SMD Module |
| Power - Output | 15 dBm |
| Protocol | 802.11b/g/n |
| RF Family/Standard | WiFi |
| Sensitivity | -86 dBm |
| Serial Interfaces | UART, I2C, SPI |
| Utilized IC / Part | MW320 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
WYSACVLAY-WX
WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.462GHz Integrated, Trace Surface Mount
