Technical Specifications
Parameters and characteristics for this part
| Specification | APX-SC00025 |
|---|---|
| Active Area | 0.25 mm² |
| Current - Dark (Typ) | 300 pA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Responsivity @ nm | 0.13 A/W |
| Spectral Range [Max] | 380 nm |
| Spectral Range [Min] | 200 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.54 | |
| 10 | $ 21.83 | |||
| 100 | $ 21.54 | |||
Description
General part information
APX-SC00025

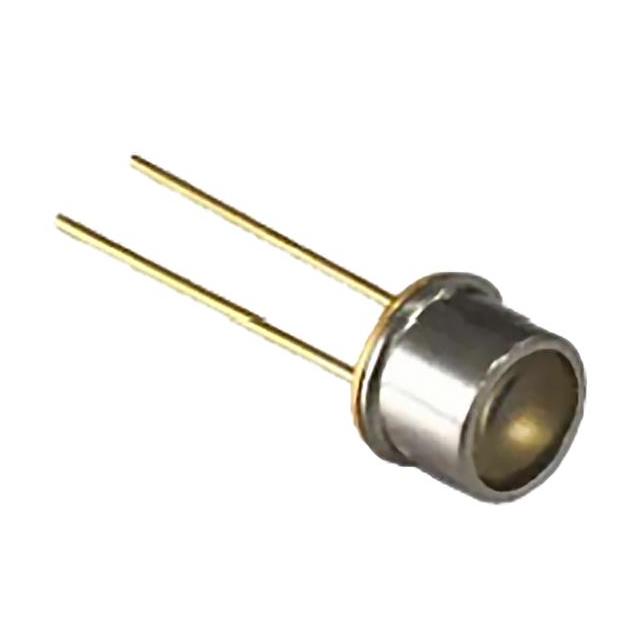

Photodiode TO-46-2 Lens Top Metal Can
