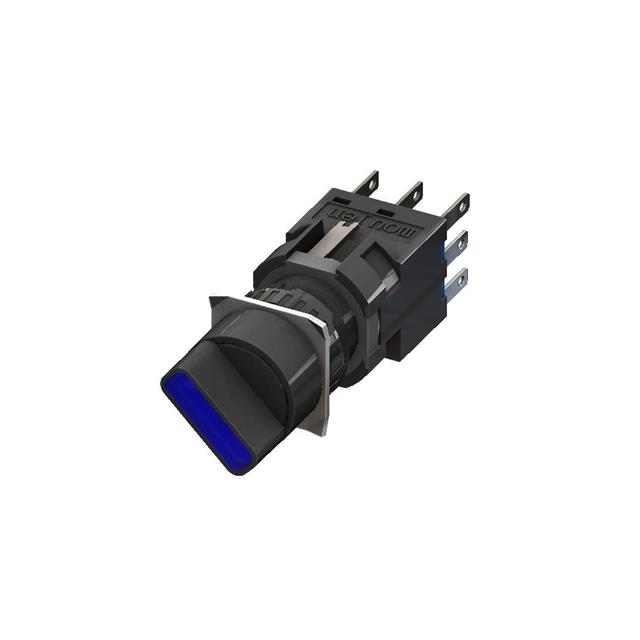

M6S-A33S2-06EB
ActiveMoujen
SWITCH SELECT 3POS SPDT 2A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M6S-A33S2-06EB |
|---|---|
| Circuit | SPDT |
| Current Rating (Amps) | 400 mA, 2 A |
| Features | UL94 V-0 |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 6 V |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16.2 mm |
| Switch Function | On-On-On |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 20 | $ 19.65 | |
| 260 | $ 16.75 | |||
Description
General part information
M6S-A33S2-06EB
Selector Switch 3 Position SPDT 2A (AC), 400mA (DC) 250 V Panel Mount
