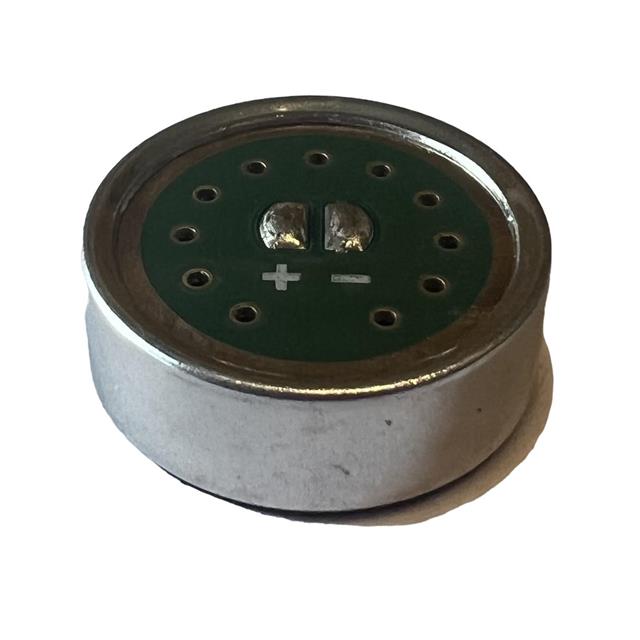

TM141054
ActiveTop Shelf Acoustics, LLC
UNI (CARDIOID) MICROPHONE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TM141054
ActiveTop Shelf Acoustics, LLC
UNI (CARDIOID) MICROPHONE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM141054 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Cardioid |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 50 Hz |
| Height (Max) [Max] [z] | 0.217 in |
| Height (Max) [Max] [z] | 5.5 mm |
| Impedance | 680 Ohms |
| Output Type | Analog |
| Port Location | Bottom |
| S/N Ratio | 68 dB |
| Sensitivity | -45 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Termination | Solder Pads |
| Type | Electret Condenser |
| Voltage - Rated | 1.5 VDC |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.73 | |
Description
General part information
TM141054
50 Hz ~ 10 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Cardioid (-45dB ±2dB) Solder Pads
