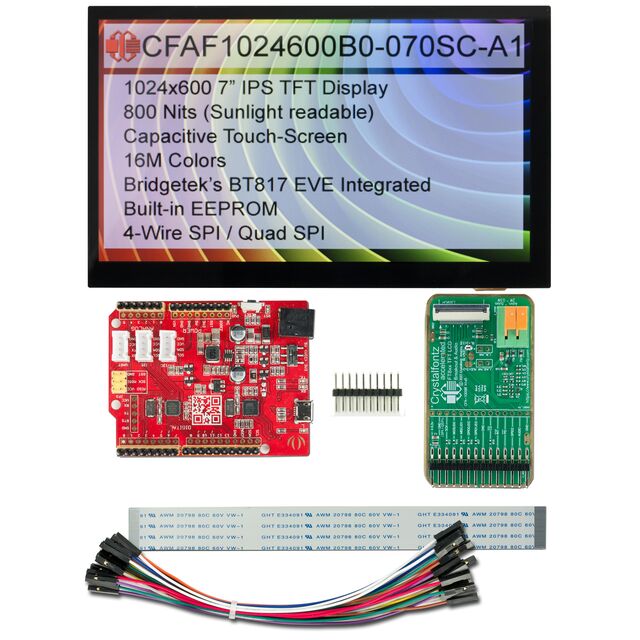

CFAF1024600B0-070SC-A1-2
ActiveCrystalfontz
1024X600 7" EVE TFT DEVELOPMENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFAF1024600B0-070SC-A1-2
ActiveCrystalfontz
1024X600 7" EVE TFT DEVELOPMENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFAF1024600B0-070SC-A1-2 |
|---|---|
| Backlight | LED - White |
| Controller Type | BT817 |
| Diagonal Screen Size | 177.8 mm |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color, IPS (In-Plane Switching) |
| Dot Pitch [x] | 0.05 mm |
| Dot Pitch [y] | 0.14 mm |
| Dot Pixels [x] | 1024 |
| Dot Pixels [y] | 600 pixels |
| Graphics Color | Green, Red, Blue |
| Interface | SPI |
| Touchscreen | Capacitive |
| Viewing Area [y] | 154.88 mm |
| Viewing Area [z] | 86.72 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 262.64 | |
Description
General part information
CFAF1024600B0-070SC-A1-2
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) SPI 7" (177.80mm) 1024 x 600
