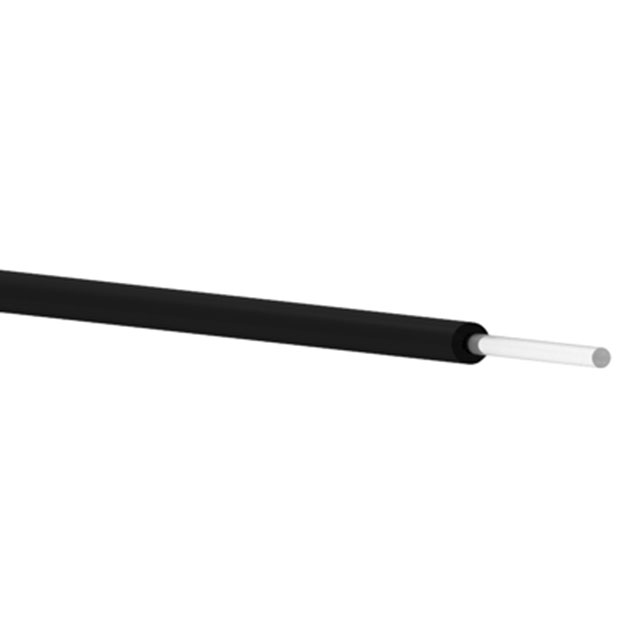

GH4001
UnknownIndustrial Fiber Optics
CBL FBR OPTIC 1000UM SMPLX METER
Deep-Dive with AI
Search across all available documentation for this part.
GH4001
UnknownIndustrial Fiber Optics
CBL FBR OPTIC 1000UM SMPLX METER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GH4001 |
|---|---|
| Attenuation - Typ | -1.4 dB/m |
| Cladding Diameter [diameter] | 1000 µm |
| Cladding Material | Fluorinated Polymer |
| Core Diameter [diameter] | 980 µm |
| Core Material | Polymethyl - Methacrylate Resin |
| Jacket (Insulation) Diameter [diameter] | 0.087 in |
| Jacket (Insulation) Diameter [diameter] | 2.21 mm |
| Jacket (Insulation) Material | Polyethylene (PE) |
| Jacket Color | Black |
| Length | 10 m, 100 m, 50 m |
| Length | 32.81 ft, 328.1 ft, 164 ft |
| Length | Enter Number of Meters in Order Quantity |
| Length [x] | 82.02 ft, 3.28 ft, 820.2 ft, 1640.4 ft |
| Length [x] | 25 m, 1 m, 250 m, 500 m |
| Numerical Aperture | 0.5 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Refractive Index - Core [custom] | 1.492 |
| Spool Size | 1640.4 ft |
| Spool Size | 500 m |
| Style | Standard |
| Tensile Strength | 8 kg |
| Type | Simplex, Multimode |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 1.89 | |
| 2 | $ 1.79 | |||
| 3 | $ 1.75 | |||
| 5 | $ 1.69 | |||
| 7 | $ 1.65 | |||
| 10 | $ 1.60 | |||
| 25 | $ 1.50 | |||
| 50 | $ 1.43 | |||
| 100 | $ 1.36 | |||
| Spool | 1 | $ 39.71 | ||
| 1 | $ 330.94 | |||
| 1 | $ 16.77 | |||
| 1 | $ 139.84 | |||
| 1 | $ 2.15 | |||
| 1 | $ 75.01 | |||
| 2 | $ 1.90 | |||
| 5 | $ 1.80 | |||
| 10 | $ 1.68 | |||
| 25 | $ 1.59 | |||
| 500 | $ 0.80 | |||
Description
General part information
GH4001
Fiber Optic Cable Black Multimode, Simplex 1000µm Enter Number of Meters in Order Quantity
