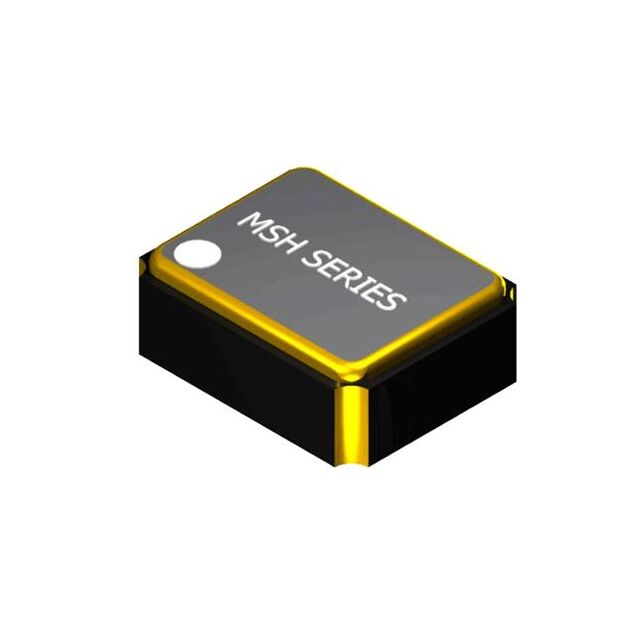

MSH302548AH-1.8432MHZ-T3
ActiveMMD
OSC XO 1.8432MHZ 3.3V HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSH302548AH-1.8432MHZ-T3
ActiveMMD
OSC XO 1.8432MHZ 3.3V HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSH302548AH-1.8432MHZ-T3 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 14 mA |
| Frequency | 1.8432 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.134 " |
| Size / Dimension [x] | 3.4 mm |
| Size / Dimension [y] | 2.7 mm |
| Size / Dimension [y] | 0.106 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.14 | |
| 10 | $ 0.99 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.86 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.75 | |||
| Digi-Reel® | 1 | $ 1.14 | ||
| 10 | $ 0.99 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.86 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.75 | |||
| Tape & Reel (TR) | 3000 | $ 0.70 | ||
| 6000 | $ 0.67 | |||
| 9000 | $ 0.65 | |||
| 15000 | $ 0.63 | |||
Description
General part information
MSH302548AH-1.8432MHZ-T3
1.8432 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
