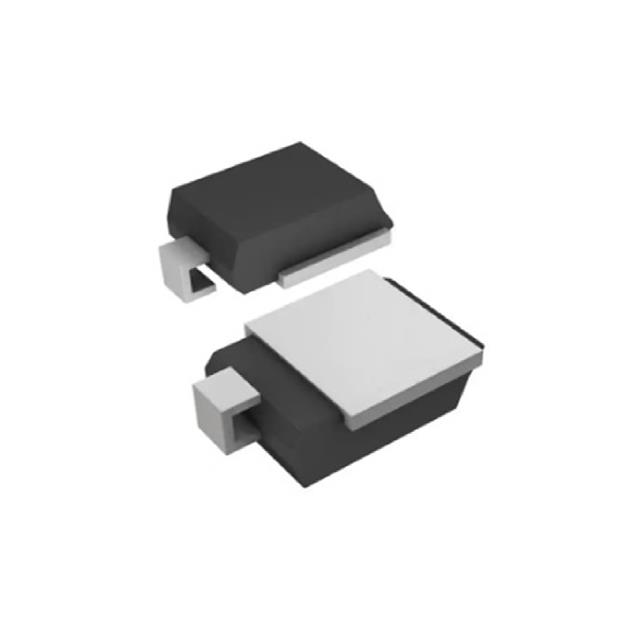

SM8S33A
ActiveYenyo Technology
TVS 6600W DIODE 33VWM UNI-DIR DO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM8S33A
ActiveYenyo Technology
TVS 6600W DIODE 33VWM UNI-DIR DO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM8S33A |
|---|---|
| Current - Peak Pulse (10/1000µs) | 124 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | DO-218AB |
| Power - Peak Pulse | 6600 W |
| Power - Peak Pulse | 6.6 kW |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-218AB |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 36.7 V |
| Voltage - Clamping (Max) @ Ipp | 53.3 V |
| Voltage - Reverse Standoff (Typ) | 33 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.00 | |
| 10 | $ 2.52 | |||
| 100 | $ 2.03 | |||
| Digi-Reel® | 1 | $ 3.00 | ||
| 10 | $ 2.52 | |||
| 100 | $ 2.03 | |||
| Tape & Reel (TR) | 5 | $ 1.90 | ||
| 10 | $ 1.85 | |||
| 20 | $ 1.78 | |||
| 100 | $ 1.63 | |||
| 500 | $ 1.51 | |||
| 750 | $ 1.81 | |||
| 1500 | $ 1.55 | |||
| 2250 | $ 1.46 | |||
| 5250 | $ 1.40 | |||
Description
General part information
SM8S33A
53.3V Clamp 124A Ipp Tvs Diode Surface Mount DO-218AB
