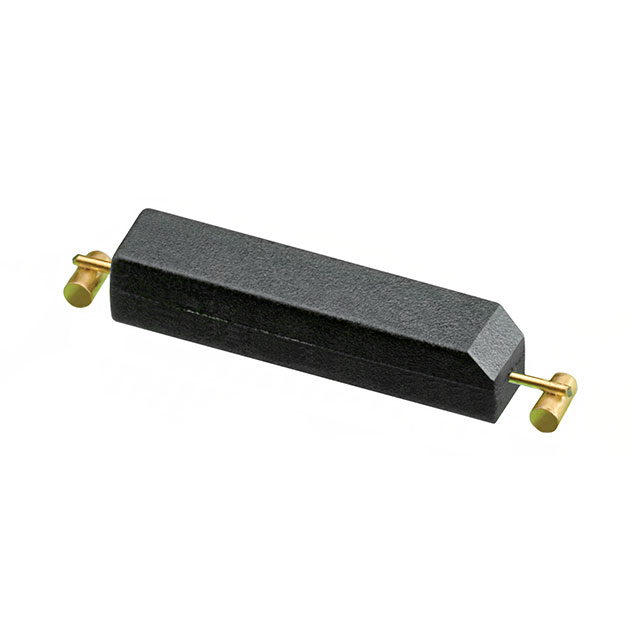

PMC-1001THY
ActivePIC GmbH
SWITCH REED SPST-NC 700MA 130V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PMC-1001THY
ActivePIC GmbH
SWITCH REED SPST-NC 700MA 130V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PMC-1001THY |
|---|---|
| Capacitance | 0.5 pF |
| Circuit | SPST-NC |
| Current - Carry | 1 A |
| Current - Switching | 700 mA |
| Length - Overall [x] | 0.772 in |
| Length - Overall [x] | 19.6 mm |
| Mounting Type | Surface Mount |
| Operate Range [Max] | 50 AT |
| Operate Range [Min] | 10 |
| Operate Time | 500 µs |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Rated | 10 W |
| Release Range | 5 AT |
| Release Time | 0.3 ms |
| Size - Body [x] | 0.575 in |
| Size - Body [x] | 14.6 mm |
| Size - Body [y] | 3 mm |
| Size - Body [y] | 0.118 in |
| Size - Body [z] | 0.138 in |
| Size - Body [z] | 3.5 mm |
| Termination Style | Axial |
| Type | Molded Body Reed |
| Voltage - Switching AC | 130 V |
| Voltage - Switching DC | 180 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.92 | |
| 10 | $ 2.45 | |||
| 25 | $ 2.27 | |||
| 100 | $ 2.03 | |||
| 250 | $ 1.88 | |||
| 500 | $ 1.78 | |||
| 1000 | $ 1.69 | |||
| Digi-Reel® | 1 | $ 2.92 | ||
| 10 | $ 2.45 | |||
| 25 | $ 2.27 | |||
| 100 | $ 2.03 | |||
| 250 | $ 1.88 | |||
| 500 | $ 1.78 | |||
| 1000 | $ 1.69 | |||
| Tape & Reel (TR) | 2000 | $ 2.02 | ||
| 4000 | $ 1.93 | |||
Description
General part information
PMC-1001THY
Molded Body Reed Switch SPST-NC 10 ~ 50AT Operate Range 10W 700mA (AC/DC) 130 V Surface Mount
Documents
Technical documentation and resources
