37422
ActiveAnamet Electrical
HTUA HEAVY DUTY HIGH TEMP CONDUI
Deep-Dive with AI
Search across all available documentation for this part.
37422
ActiveAnamet Electrical
HTUA HEAVY DUTY HIGH TEMP CONDUI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 37422 |
|---|---|
| Color | Gray |
| Diameter - Inside [diameter] | 0.84 in |
| Diameter - Inside [diameter] | 21.34 mm |
| Diameter - Outside [diameter] | 26.67 mm |
| Diameter - Outside [diameter] | 1.05 " |
| Heat Protection | Flame Retardant, Heat Resistant |
| Length | 100 ft |
| Length | 30.48 m |
| Liquid Protection | Oil Resistant |
| Material | Poly-Vinyl Chloride (PVC) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -46 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Square Lock |
| Wall Thickness | 5.33 mm |
| Wall Thickness | 0.21 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 462.94 | |
Description
General part information
37422

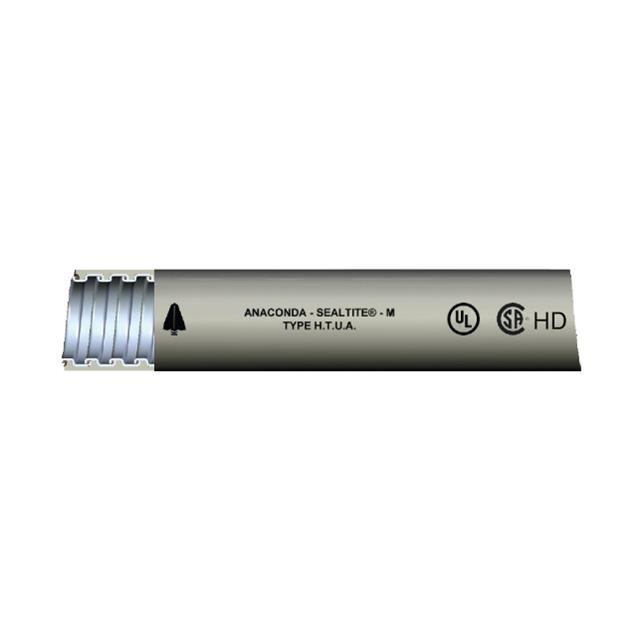

Gray Poly-Vinyl Chloride (PVC) Convoluted, Square Lock Wire Loom, Protective Hose 0.840" (21.34mm) 100' (30.48m)
Documents
Technical documentation and resources
No documents available
