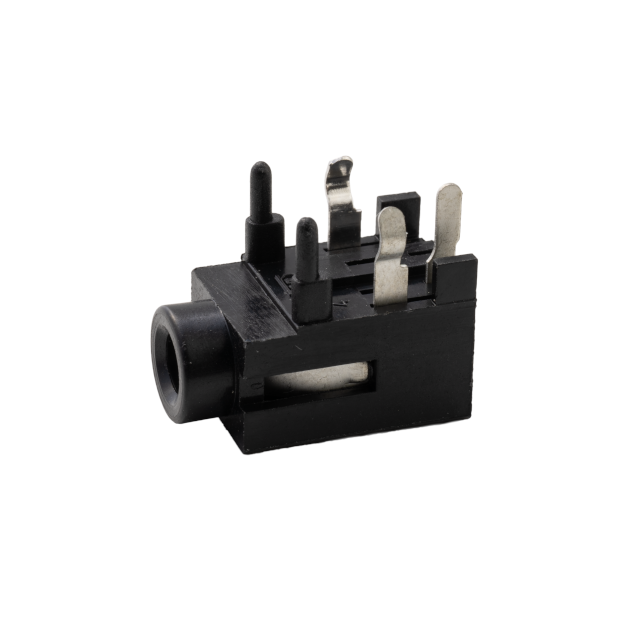

RSJ3550H01030NL
ActiveRDI, Inc.
3.5MM AUDIO JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSJ3550H01030NL
ActiveRDI, Inc.
3.5MM AUDIO JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSJ3550H01030NL |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Connector Type | Phone Jack |
| Contact Material - Plating | Tin |
| Gender | Female |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 400 | $ 0.82 | |
| 1600 | $ 0.64 | |||
| 2400 | $ 0.57 | |||
| 5200 | $ 0.52 | |||
| 10000 | $ 0.48 | |||
Description
General part information
RSJ3550H01030NL
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
