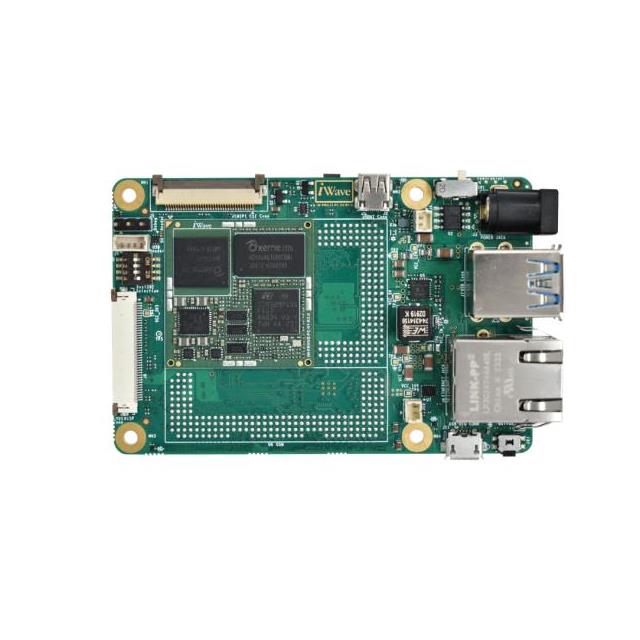

iW-G54S-OS35-3D512M-E004G-BCA
ActiveiWave Global
STM32MP135F OSM SBC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
iW-G54S-OS35-3D512M-E004G-BCA
ActiveiWave Global
STM32MP135F OSM SBC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | iW-G54S-OS35-3D512M-E004G-BCA |
|---|---|
| Cooling Type | Fan |
| Core Processor | ARM® Cortex®-A7 |
| Expansion Site/Bus | ADC, RGMII, CAN, I2C, SPI, UART, PWM, JTAG, GPIO, RGB |
| Number of Cores | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Capacity/Installed | 512 MB, 0 GB |
| Size / Dimension [x] | 3.37 in, 85.6 mm |
| Size / Dimension [y] | 2.224 in, 56.5 mm |
| Speed | 1 GHz |
| Storage Interface | SDIO, I2C, SPI, eMMC, microSD |
| USB | USB 2.0 OTG |
| Video Outputs | RGB |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 268.42 | |
Description
General part information
iW-G54S-OS35-3D512M-E004G-BCA
Single Board Computer 1GHz 1 Core 512MB/0GB RAM ARM® Cortex®-A7
