TF21844M
ActiveTF Semiconductor Solutions
600V, HALF BRIDGE GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
TF21844M
ActiveTF Semiconductor Solutions
600V, HALF BRIDGE GATE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TF21844M |
|---|---|
| Channel Type | Independent |
| Current - Peak Output (Source, Sink) [custom] | 2.3 A |
| Current - Peak Output (Source, Sink) [custom] | 1.9 A |
| Driven Configuration | Half-Bridge |
| Gate Type | N-Channel MOSFET, IGBT |
| Input Type | Non-Inverting |
| Logic Voltage - VIL, VIH | 2.5 V, 0.8 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Rise / Fall Time (Typ) [custom] | 20 ns |
| Rise / Fall Time (Typ) [custom] | 40 ns |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.29 | |
| 10 | $ 1.47 | |||
| 25 | $ 1.25 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.76 | |||
| Digi-Reel® | 1 | $ 2.29 | ||
| 10 | $ 1.47 | |||
| 25 | $ 1.25 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.89 | |||
| 500 | $ 0.82 | |||
| 1000 | $ 0.76 | |||
| Tape & Reel (TR) | 2500 | $ 0.70 | ||
| 5000 | $ 0.66 | |||
| 7500 | $ 0.64 | |||
| 12500 | $ 0.61 | |||
Description
General part information
TF21844M

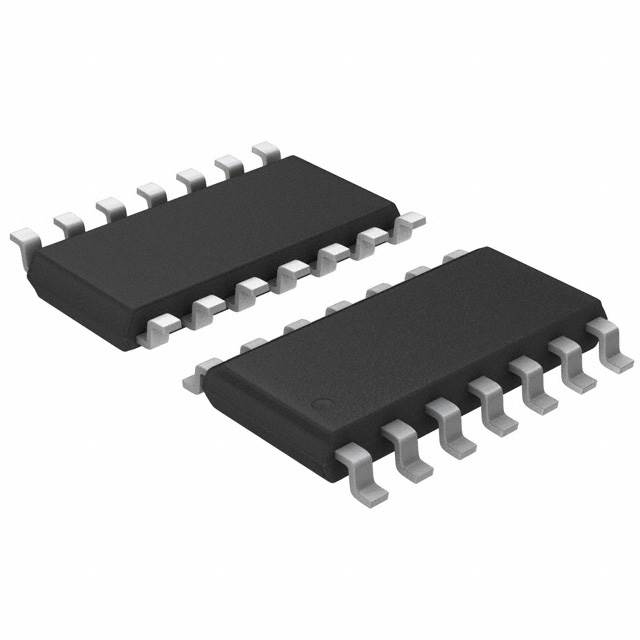

Half-Bridge Gate Driver IC Non-Inverting 14-SOIC
